Job Name:
 Job Type:
Comments:
 Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

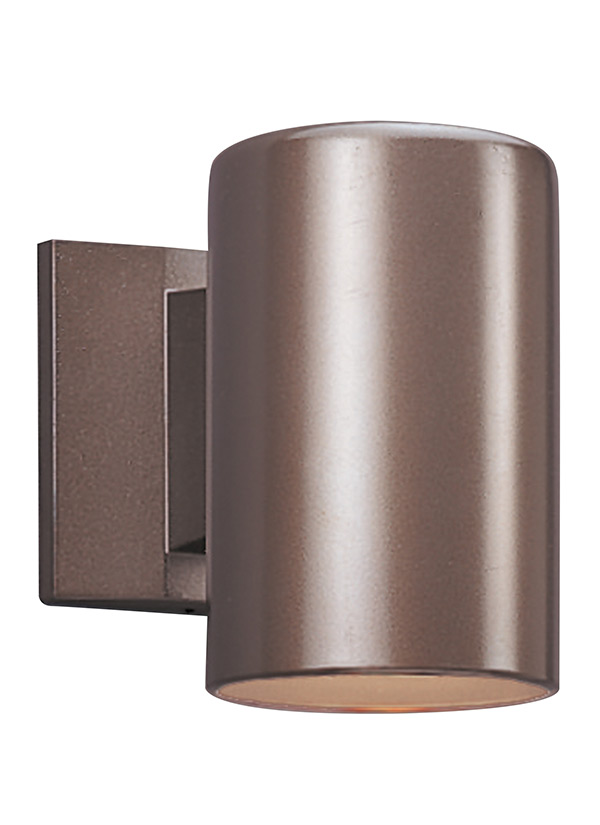

8338-10: One Light Outdoor Wall Lantern


Collections: Outdoor Bullets (Primary)
Dark Sky


Exterior tubed light with Bronze Aluminum finish. Accomodates one light.

Neighbor friendly exterior wall cylinder with bronze finish over aluminum. Meets dark sky requirements

Meets Dark Sky Requirements

UPC #:785652833809

Finish:   Bronze (10)
Dimensions:

Width: 5''
Height: 7''
Extends: 8''
Wire: 6 1/2''
Connection: Mounted To Box
Bulbs:
  1 - Medium BR30 65w Max. 120v - Not included
1 - LED Medium BR30 15w Max. 120v - Not included
1 - LED Medium PAR30L 15w Max. 120v - Not included
Features:
  • Dark Sky friendly. Designed to emit no light above the 90° horizontal plane. Photometry unavailable.
  • Easily converts to LED with optional replacement lamps
Material List:
1 Body - Aluminum - Bronze
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-301)

Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 7/16  5  3 3/8    3  4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97320S     BR30 E-26 Medium 15 15 120v 50000 800  FL  120° 3000 80
97420S Frosted     BR30 E-26 Medium 15 15 120v 50000 800  FL  120° 2700 80
97314S     PAR30L E-26 Medium 15 15 120v 50000 720  FL  40° 3000 85
97414S Frosted     PAR30L E-26 Medium 15 15 120v 50000 700  FL  40° 2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8338-10 1  785652833809  8.25 8.25 8.5 0.335 1.6 175 Yes
NJ Pallet   300    48 40 75 83.333 480 No
NV Pallet   300    48 40 75 83.333 480 No
