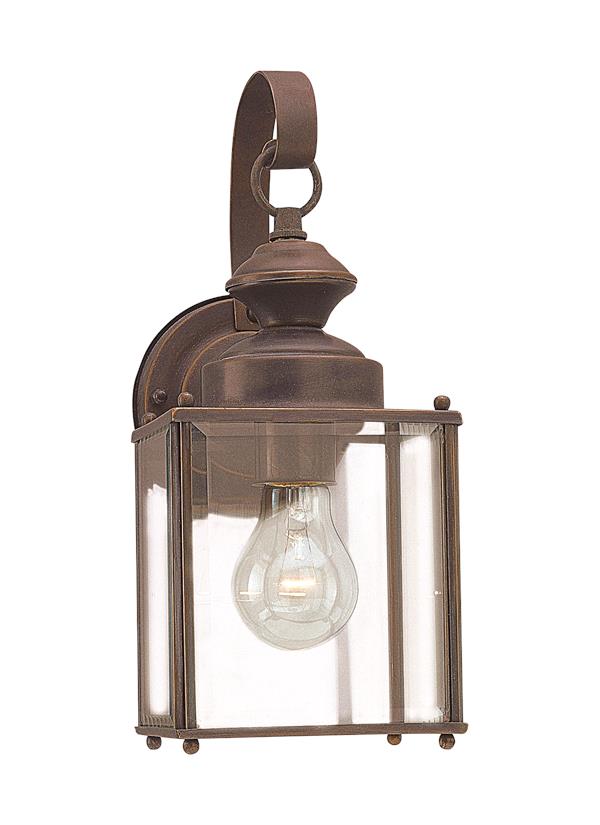

8457-71: One Light Outdoor Wall Lantern



Collection:  Jamestowne


Large Outdoor Wall Lantern Finished in Antique Bronze Solid Brass with Clear Beveled Glass.

Outdoor wall lantern finished in antique bronze over solid brass with clear beveled glass.

UPC #:785652845772

Finish:   Antique Bronze (71)

Dimensions:

Width: 5 1/4''
Height: 12 1/2''
Weight: 2.7 lbs.
Extends: 5 3/4''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Antique Bronze
1 Canopy - Brass - Antique Bronze
1 Bracket - Brass - Antique Bronze
1 Candle Cup - Brass - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-231)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Beveled 1     3 7/16 5 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     2 1/8  4 1/2  6 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8457-71 785652845772  7.5 6.5 11.5 0.324 3.4 100 Yes
Master Pack   10785652845779  20.25 8 12.5 1.172 11.35 100 Yes
NJ Pallet   204    48 40 72 80 772 No
NV Pallet   204    48 40 72 80 772 No
