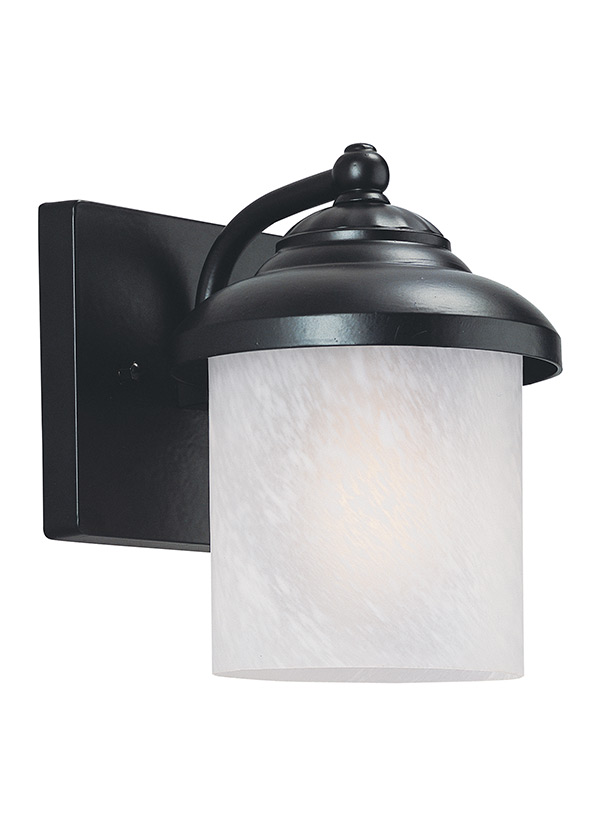

84048-12: Small One Light Outdoor Wall Lantern


Collection:  Yorktown

One Light Outdoor Wall Fixture in Black Finish

Design #: D30033

Featured in the decorative Yorktown collection

1 A19 Medium 100 watt light bulb

swirled marbleize glass shade

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652025044

Finish:   Black (12)
Dimensions:

Width: 6''
Height: 8 1/2''
Weight: 2.3 lbs.
Extends: 7 1/2''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-641)
English (F-009)
Trilingual (English, Spanish, and French) (84048)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Swirled Marbleize 1
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5  5  3/4    3 1/4  5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 84048-12 1  785652025044  11.25 10.25 8 0.534 2.9 0 Yes
Master Pack 84048-12 0  10785652025041
NJ Pallet   144    48 40 75 83.333 417.6 No
NV Pallet   144    48 40 75 83.333 417.6 No
