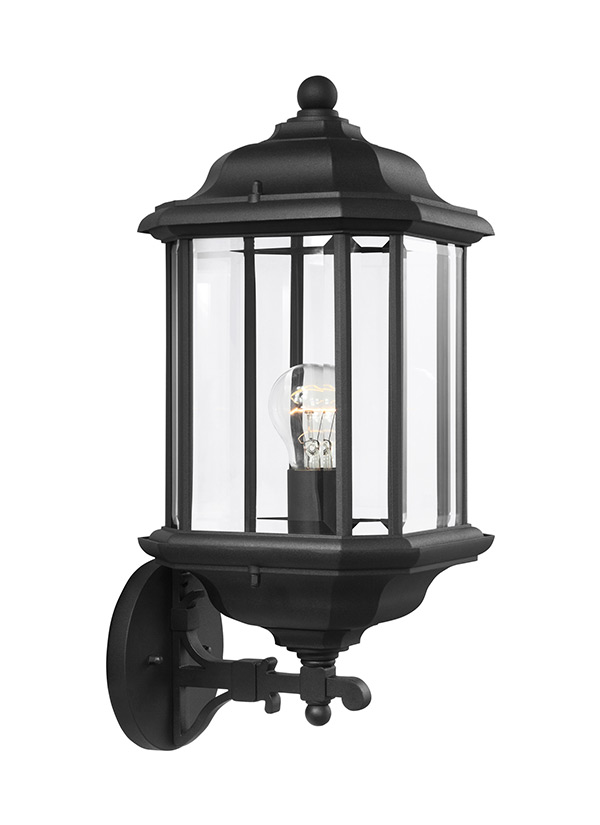

84032-12: One Light Outdoor Wall Lantern


Collection:  Kent

Outdoor wall lantern finished black over die-cast aluminum with clear beveled glass.

One Light Outdoor Wall Lantern in Black Finish with Clear Beveled Glass

Design #: D20034

Supplied with 6.5-inches of wire

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Designed for damp and wet environments allowing for direct water contact

1-year manufacturer warranty

Meets Title 24 energy efficiency standards

UPC #:785652840326

Finish:   Black (12)
Dimensions:

Width: 8 1/2''
Height: 19 1/4''
Weight: 5.7 lbs.
Extends: 9 1/2''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-407)
French (F-009)
Trilingual (English, Spanish, and French) (990W84030-84530-84032-84532-KEN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Beveled 4
Panel Glass Clear Beveled 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate     5/8  5 1/2  16 1/2  2 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 84032-12 1  785652840326  11 10 21 1.337 7.14 0 Yes
Master Pack 84032-12 0  10785652840323
NJ Pallet   42    48 40 74.5 82.778 299.8 No
NV Pallet   42    48 40 72 80 390.6 No
