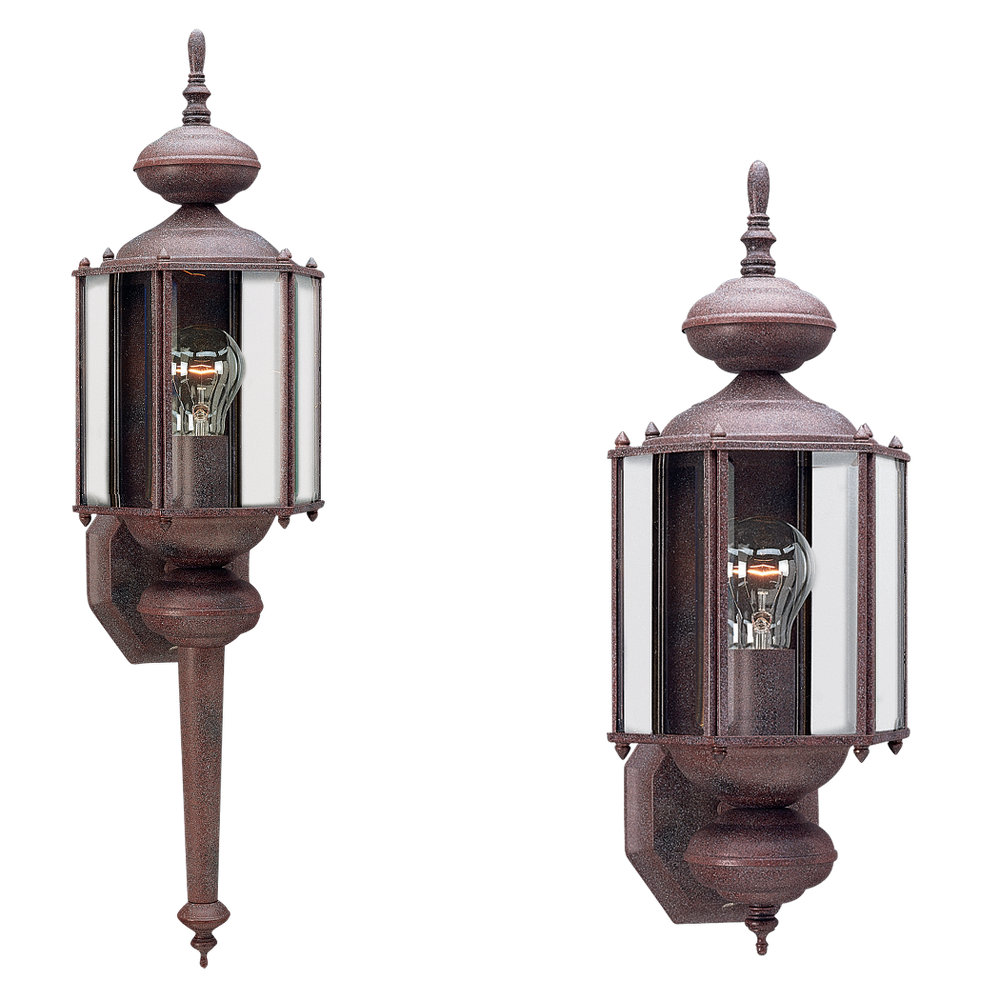

8510-26: One Light Outdoor Wall Lantern

	Collection: Classico
	Single Light Outdoor Wall Lantern in Sienna Finish with Clear Beveled Glass. Install with or without Tail.
	Single light outdoor wall lantern in sienna finish over solid brass with clear beveled glass. Installs with or without tail. (Height without tail: 18 1/2")
	UPC #:785652851063
	Finish: Sienna (26)

Dimensions:


Width:	7''
Height:	25 1/2''

Height wo/ Tail:

17 3/4''

Extends:

7''

Wire:

6 1/2''

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Appearance:

Clear

Bulbs:

1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included

Features:

Clear bulb(s) recommended for this fixture
Easily converts to LED with optional replacement lamps

Material List:

1 Body - Aluminum - Sienna

1 Canopy - Aluminum - Sienna

1 Socket Cover - Aluminum - Sienna

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

English (HC-224)
French (F-009)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Clear Beveled

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	5 1/2	4 3/4			15

Replacement Bulb Data:

Product #		Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97308S	Frosted	A19	E-26 Medium	8	8	120v	50000	450	3000	85
97408S	Frosted	A19	E-26 Medium	8	8	120v	50000	450	2700	85
97309S	Frosted	A19	E-26 Medium	13.5	13.5	120v	50000	800	3000	85
97409S	Frosted	A19	E-26 Medium	13.5	13.5	120v	50000	800	2700	85

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8510-26	1	785652851063	8.25	8.25	14.5	0.571	4	125	Yes
NJ Pallet		120		48	40	72	80	480		No
NV Pallet		120		48	40	72	80	480		No
