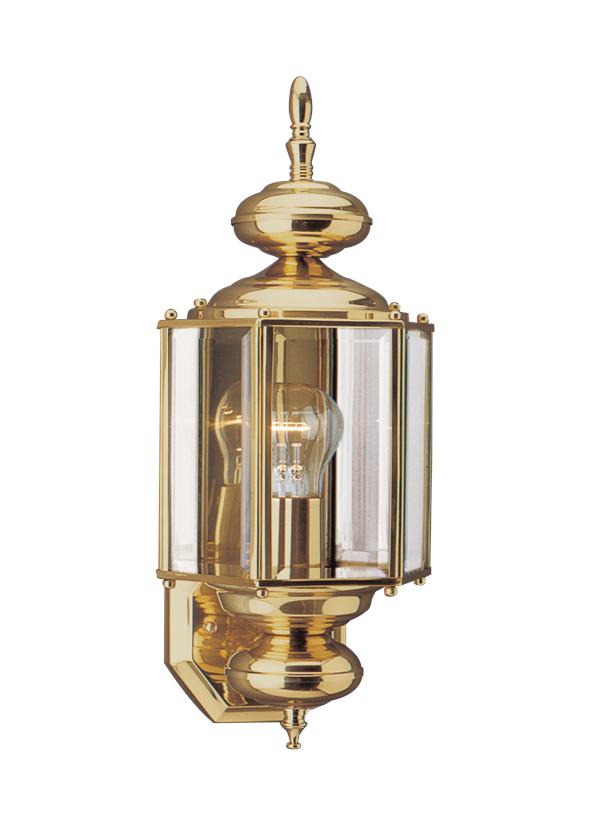

8510-02: One Light Outdoor Wall Lantern


Collection:  Classico

Single Light Outdoor Wall Lantern in Polished Brass Finish with Clear Beveled Glass. Install with or without Tail.

Single light outdoor wall lantern in polished solid brass with clear beveled glass. Installs with or without tail. (Height without tail: 18 1/2")

UPC #:785652851025

Finish:   Polished Brass (02)
Dimensions:

Width: 7''
Height: 25 1/2''
Height wo/ Tail: 17 3/4''
Extends: 7''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Polished Brass
1 Canopy - Brass - Polished Brass
1 Socket Cover - Brass - Polished Brass
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-224)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Beveled 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 1/2  4 3/4      15  10 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8510-02 1  785652851025  8.5 8.5 14.75 0.617 5.45 100 Yes
NJ Pallet   112    48 40 72 80 611 No
NV Pallet   135    48 40 78.18 86.867 688.5 No
