8507-26: One Light Outdoor Wall Lantern

	Collection: Classico

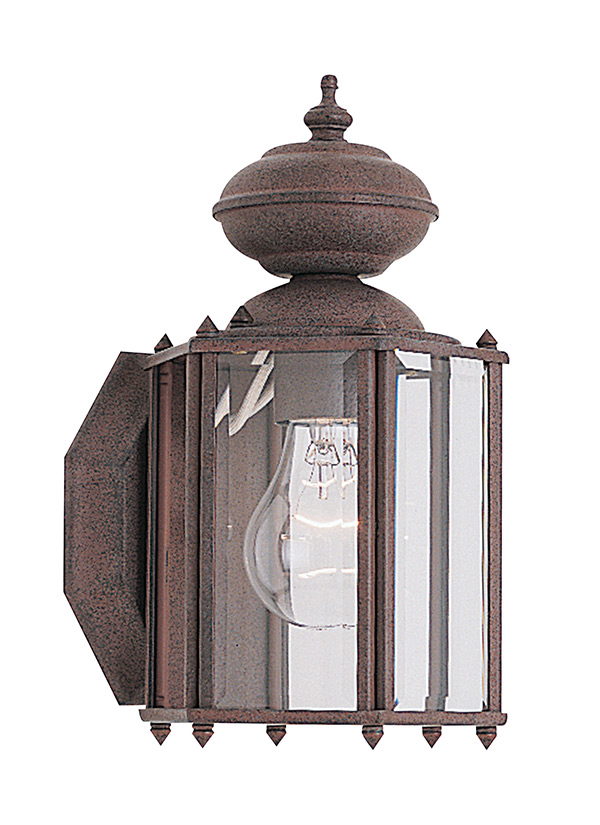

	Classic One Light Outdoor Wall Lantern in Sienna Finish with Clear Beveled Glass.
	Outdoor wall lantern with Sienna finish over solid brass with clear beveled glass.
	UPC #:785652850769
	Finish: Sienna (26)

Dimensions:


Width:	5 3/4''
Height:	10 1/2''

Extends:

5 3/4''

Wire:

6 1/2''

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulb Appearance:

Clear

Bulbs:

1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included

Features:

Clear bulb(s) recommended for this fixture
Easily converts to LED with optional replacement lamps

Material List:

1 Body - Aluminum - Sienna

1 Canopy - Aluminum - Sienna

1 Candle Cover - Aluminum - Sienna

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

English (HC-328)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Clear Beveled

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	5 9/16	4 3/4	3/4		7 1/4

Replacement Bulb Data:

Product #		Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97308S	Frosted	A19	E-26 Medium	8	8	120v	50000	450	3000	85
97408S	Frosted	A19	E-26 Medium	8	8	120v	50000	450	2700	85
97309S	Frosted	A19	E-26 Medium	13.5	13.5	120v	50000	800	3000	85
97409S	Frosted	A19	E-26 Medium	13.5	13.5	120v	50000	800	2700	85

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8507-26	1	785652850769	6.5	6.5	11	0.269	3.1	93	Yes
Master Pack		2	10785652850766	14	7.25	12.25	0.72	6.95	93	Yes
NJ Pallet		168		48	40	72	80	583		No
NV Pallet		168		48	40	72	80	583		No
