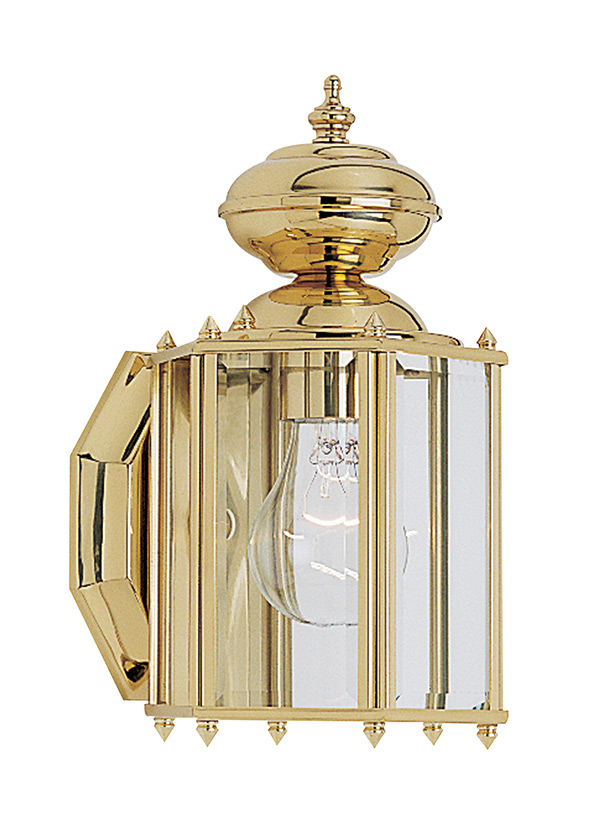

8507-02: One Light Outdoor Wall Lantern


Collection:  Classico

Solid Brass Classic One Light Outdoor Wall Lantern in Polished Brass Finish with Clear Beveled Glass.

Outdoor wall lantern finished in polished solid brass with clear beveled glass.

Featured in the decorative Classico collection

1 A19 Medium 100 watt light bulb

Clear beveled glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652850721

Finish:   Polished Brass (02)
Dimensions:

Width: 5 3/4''
Height: 10 1/2''
Weight: 2.2 lbs.
Extends: 5 3/4''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Brass - Polished Brass
1 Canopy - Brass - Polished Brass
1 Candle Cover - Brass - Polished Brass
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
English (HC-328)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Beveled 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 9/16  4 3/4  3/4    7 1/4  3 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8507-02 1  785652850721  6.75 6.5 11.25 0.286 2.75 0 Yes
Master Pack   2  10785652850728  13.75 7.25 12.5 0.721 6.2 0 Yes
NJ Pallet   216    48 40 76 84.444 669.9 No
NV Pallet   216    48 40 76 84.444 669.9 No
