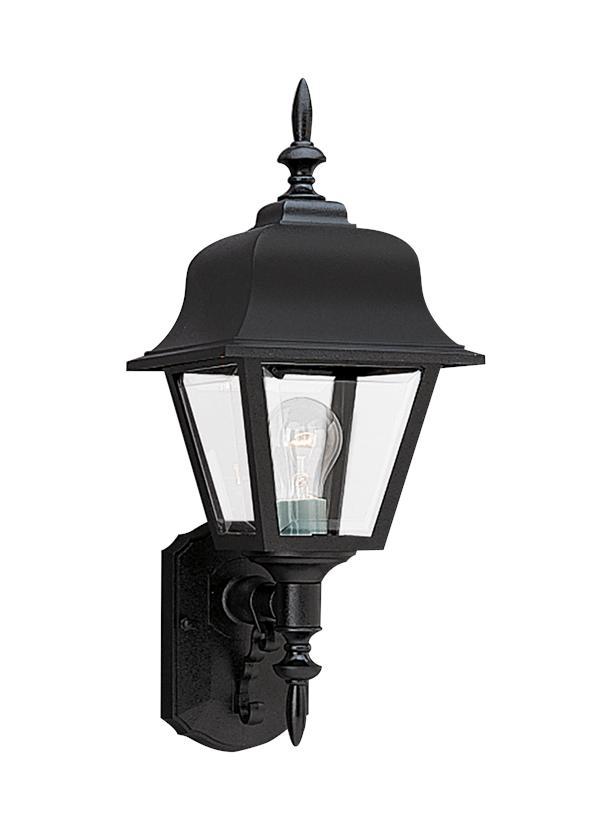

8765-12: One Light Outdoor Wall Lantern


Collection:  Polycarbonate Outdoor

Single Light Outdoor Fixture with Black Finish and Clear Beveled Acrylic Panels

Black polycarbonate outdoor wall lantern installs with or without tail. Clear beveled Acrylic panels. Virtually indestructible.

Featured in the decorative Polycarbonate Outdoor collection

1 A19 Medium 100 watt light bulb

Clear beveled acrylic panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652876523

Finish:   Black (12)
Dimensions:

Width: 8''
Height: 25''
Weight: 1.7 lbs.
Height wo/ Tail: 20''
Extends: 9''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Polycarbonate - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (HC-223)
French (F-009)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Acrylic Clear Beveled 4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7 1/4  4 1/4  1    15 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 8765-12 1  785652876523  8.58 8.5 16.5 0.696 2.1 0 Yes
Master Pack 8765-12 0  10785652876520
NJ Pallet   100    48 40 72 80 210.1 No
NV Pallet   80    48 40 72 80 168 No
