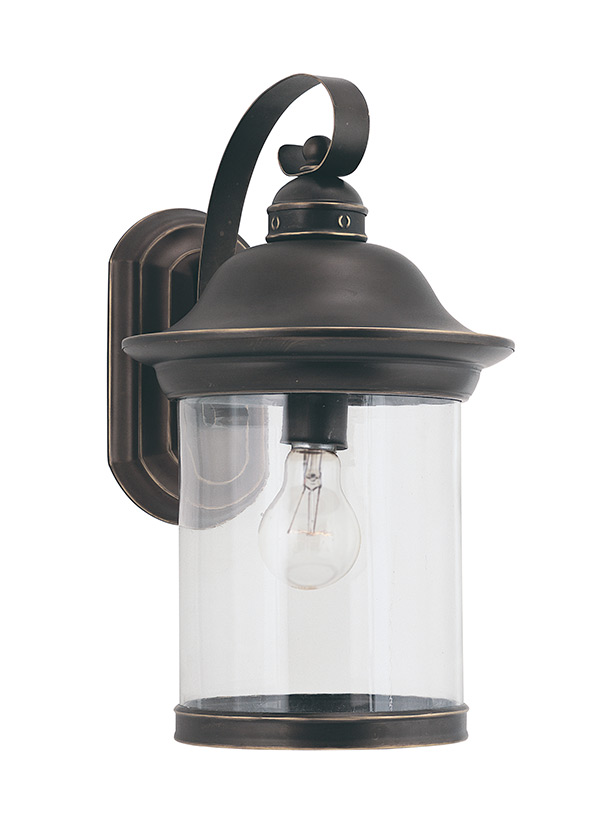

88082-71: One Light Outdoor Wall Lantern



Collection:  Hermitage


Outdoor One Light Wall Fixture in Antique Bronze Finish with Clear Glass with Antique Bronze Banding.

Classic lantern in antique bronze finished over solid brass with clear glass.

Design #: D40013; Family name: Hermitage

UPC #:785652999703

Finish:   Antique Bronze (71)

Dimensions:

Width: 9''
Height: 15 1/4''
Extends: 10 1/2''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulb Appearance: Clear
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
1 - LED Medium A19 8w Max. 120v - Not included
1 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Antique Bronze
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-608FS)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Clear 1         6 3/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  1 1/8    9 1/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 88082-71 785652999703  12.5 10.58 18 1.378 7.15 150 Yes
NJ Pallet   48    48 40 74 82.222 304.8 No
NV Pallet   48    48 40 77 85.556 312 No
