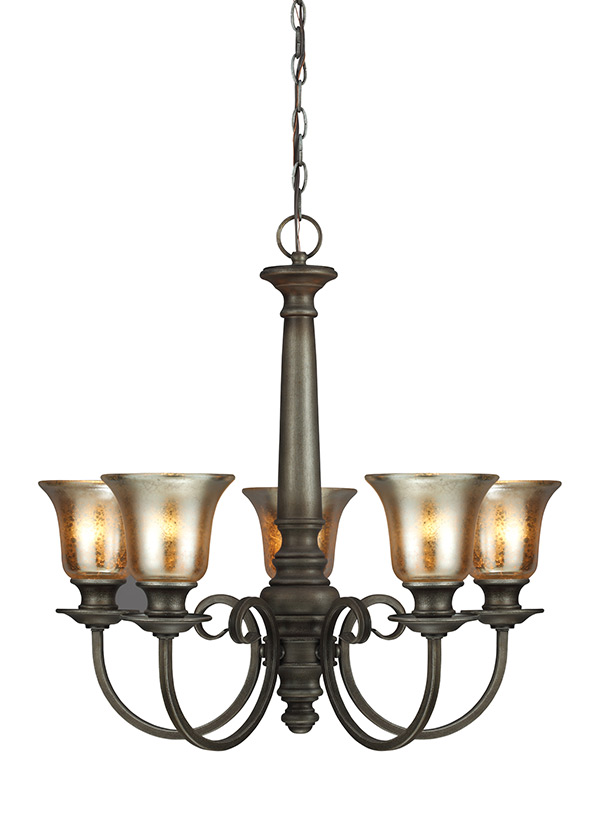

3170405BLE-736: Five Light Chandelier

	Collection: Blayne
	UPC #:785652243912
	Finish: Platinum Oak (736)

Dimensions:


Diameter:	26''
Height:	25 1/4''

Overall Height:

147 1/4''

Wire:

144'' (color/Brown)

Chain:

120''

Mounting Proc.:

Screw Collar - Chain

Connection:

Mounted To Box

Bulbs:

5 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included

Features:

ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Supplied with wire pre-laced through chain

Material List:

1 Body - Steel - Platinum Oak

Safety Listing:

Safety Listed for Dry Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990CH317040_BLE-BYE)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Glass

Mercury

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/4			5 1/2

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97102	Frosted Glass Lens		Self Ballasted CFL	GU24	13	13	120v	10000	900	2700	81

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	3170405BLE-736	1	785652243912	30	25.75	11	4.918	18.3	250	Yes
NJ Pallet		12		48	40	72	80	219.6		No
NV Pallet		12		48	40	72	80	219.6		No
