Job Name:
 Job Type:
Comments:
 Quantity:
** By typing in the gray boxes above you can populate this form before printing.
** To save this document click on the logo above. A pdf document of this Specification Sheet will be created that can be saved locally.

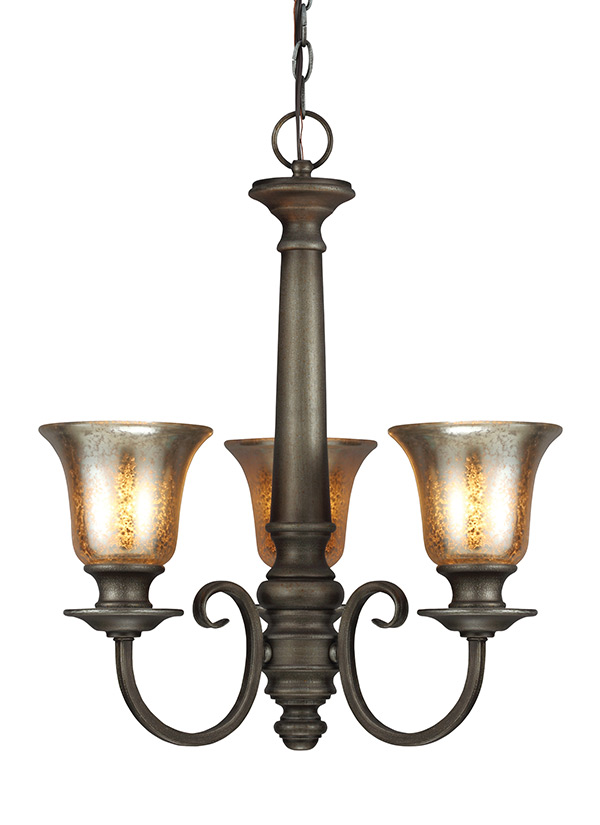

3170403-736: Three Light Chandelier


Collection:  Blayne

UPC #:785652243783

Finish:   Platinum Oak (736)
Dimensions:

Diameter: 20 1/4''
Height: 22 1/2''
Overall Height: 144 1/2''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Platinum Oak
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH317040_-BYE)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Mercury 3       5 6       6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/4      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3170403-736 1  785652243783  23.4 19 9.4 2.419 11.7 175 Yes
NJ Pallet   28    48 40 72 80 327.6 No
NV Pallet   28    48 40 72 80 327.6 No
