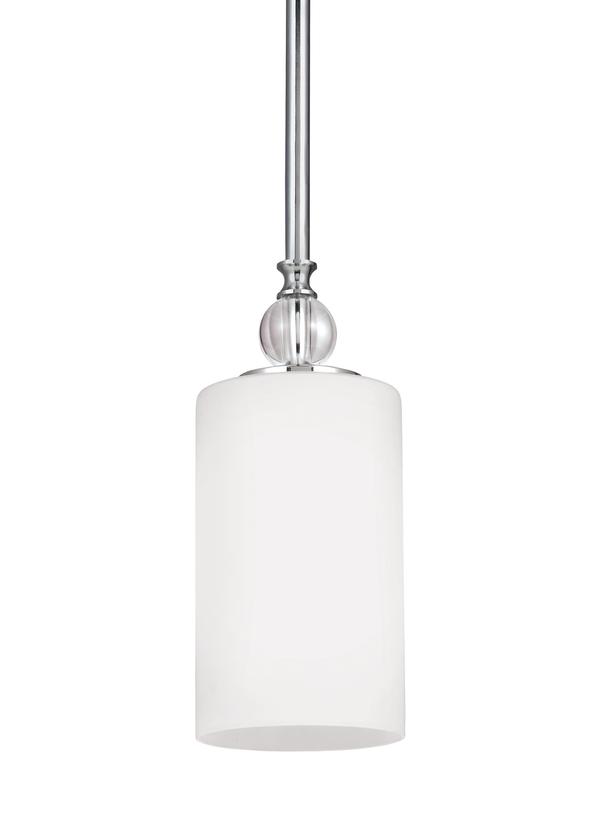

6113401BLE-05: One Light Mini-Pendant

	Collection: Englehorn
	Direct Replacement: 6113401EN-05
	UPC #:785652242922
	Finish: Chrome (05)

Dimensions:


Diameter:	4''
Height:	9 1/4''

Weight:

2.8 lbs.

Overall Height:

56''

Wire:

120'' (color/Clear)

Mounting Proc.:

Dual Mount

Connection:

Mounted To Box

Bulbs:

1 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included

Features:

ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Sloped ceiling mounting hardware included

Material List:

1 Body - Steel - Chrome

3 12" Stem - Steel - Chrome

1 6" Stem - Steel - Chrome

1 Body - K9 Optic Crystal - Optic Crystal

Safety Listing:

Safety Listed for Dry Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990P6113401-EGN)
Trilingual (English, Spanish, and French) (ADD_CHAIN VAULT)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Glass

Etched / White Inside

6 11/16

3 15/16

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	1 1/8			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97102	Frosted Glass Lens		Self Ballasted CFL	GU24	13	13	120v	10000	900	2700	81

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6113401BLE-05	1	785652242922	13.2	8.7	7.7	0.512	3.8	125	Yes
Master Pack		3	10785652242929	23	8.7	14.4	1.667	12.9	125	Yes
NJ Pallet		135		48	40	72	80	580.5		No
NV Pallet		135		48	40	72	80	580.5		No
