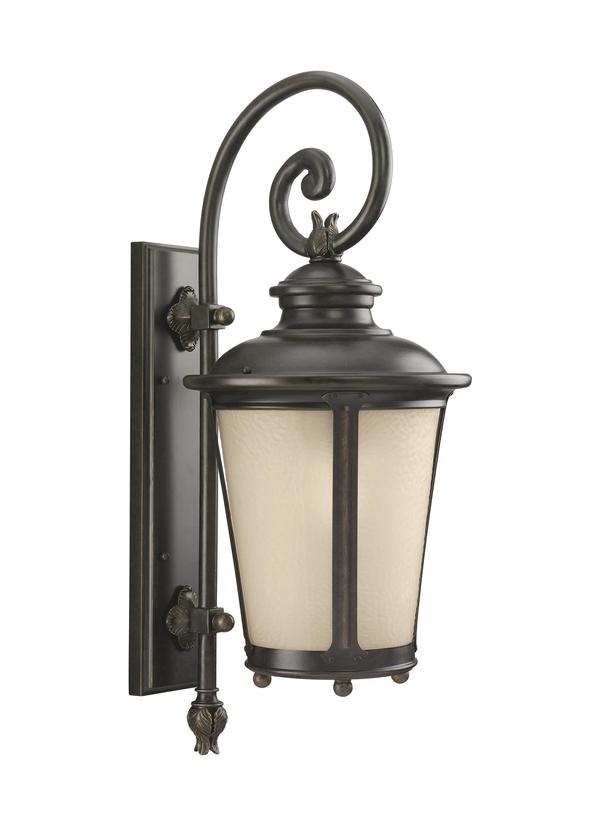

88242-780: Large One Light Outdoor Wall Lantern


Collection:  Cape May

One Light Wall Lantern in Burled Iron Finish with Etched Hammered with Light Amber Glass Shade

Featured in the decorative Cape May collection

1 A19 Medium 100 watt light bulb

Etched hammered with light amber glass diffuser

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652242786

Finish:   Burled Iron (780)
Dimensions:

Width: 11''
Height: 26 1/4''
Weight: 7.5 lbs.
Extends: 13 3/4''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Burled Iron
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (HC-1180)
French (F-006)
Trilingual (English, Spanish, and French) (88242)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Diffuser Glass Etched Hammered with Light Amber 1       10 15/32 8 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 18 1/8  4 1/2  1    9 1/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 88242-780 1  785652242786  15.75 13.5 27 3.322 11.6 0 Yes
Master Pack 88242-780 0  10785652242783
NJ Pallet   21    48 40 72.5 80.556 243.6 No
NV Pallet   21    48 40 72.5 80.556 243.6 No
