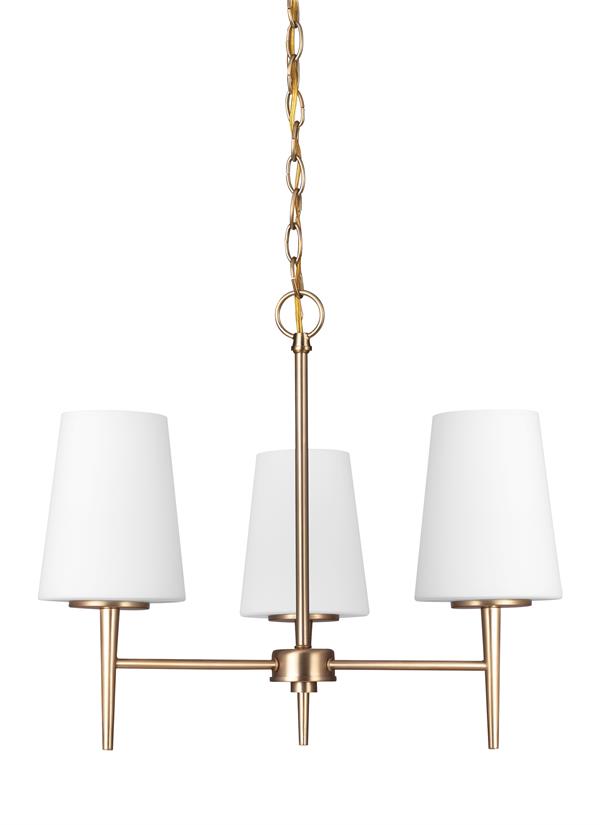

3140403-848: Three Light Chandelier


Collection:  Driscoll

Featured in the decorative Driscoll collection

3 A19 Medium 100 watt light bulbs

cased opal Etched glass

Easily converts to LED with optional replacement lamps

Meets Title 24 energy efficiency standards

UPC #:785652239540

Finish:   Satin Brass (848)
Dimensions:

Diameter: 20 1/2''
Height: 16 3/4''
Weight: 6.9 lbs.
Overall Height: 55''
Wire: 120'' (color/Gold)
Chain: 36''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 100w Max. 120v - Not included
Features:
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Satin Brass
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (3140403 3140405)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Cased Opal Etched 3 G560110-607     6 1/2 5 5/32   3 11/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1 1/4      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 3140403-848 1  785652239540  18 18.25 10.5 1.996 9.2 0 Yes
Master Pack 3140403-848 0  10785652239547
NJ Pallet   40    48 40 75 83.333 368 No
NV Pallet   40    48 40 77 85.556 350 No
