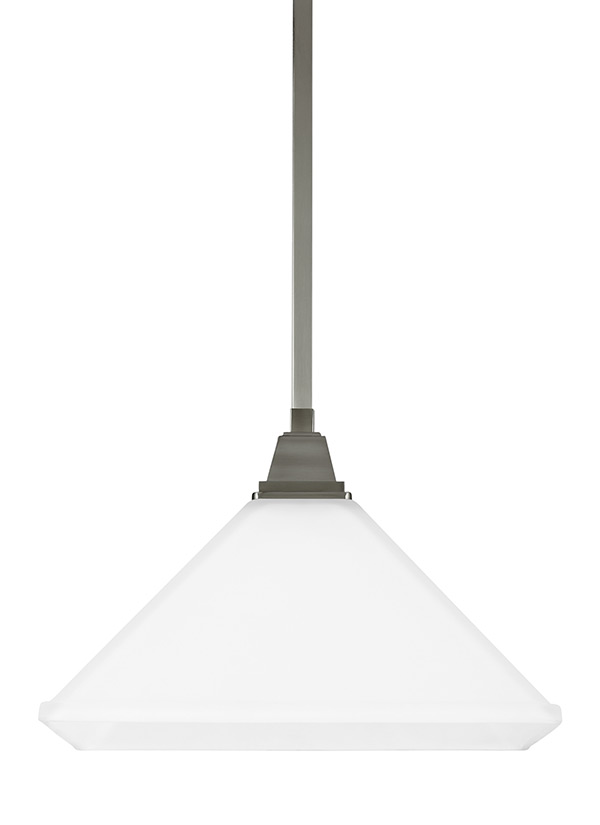

6550401BLE-962: One Light Pendant

	Collection: Denhelm
	UPC #:785652246791
	Finish: Brushed Nickel (962)

Dimensions:


Length:	12 1/2"
Width:	12 1/2''
Height:	8''

Overall Height:

57 3/4''

Wire:

120'' (color/Clear)

Chain:

3''

Mounting Proc.:

Dual Mount

Connection:

Mounted To Box

Bulbs:

1 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included

Features:

ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Sloped ceiling mounting hardware included

Material List:

1 Body - Steel / Zinc - Brushed Nickel

3 12" Stem - Steel - Brushed Nickel

1 6" Stem - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Dry Locations

Instruction Sheets:

Trilingual (English, Spanish, and French) (990P6550401BLE-DEN)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Glass

Etched / White Inside

15 1/2

6 1/8

2 1/4

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	2 1/4	4 3/4	4 3/4

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97102	Frosted Glass Lens		Self Ballasted CFL	GU24	13	13	120v	10000	900	2700	81

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	6550401BLE-962	1	785652246791	15.25	15.25	13.75	1.851	11.5	125	Yes
NJ Pallet		36		48	40	65.5	72.778	414		No
NV Pallet		36		48	40	65.5	72.778	414		No
