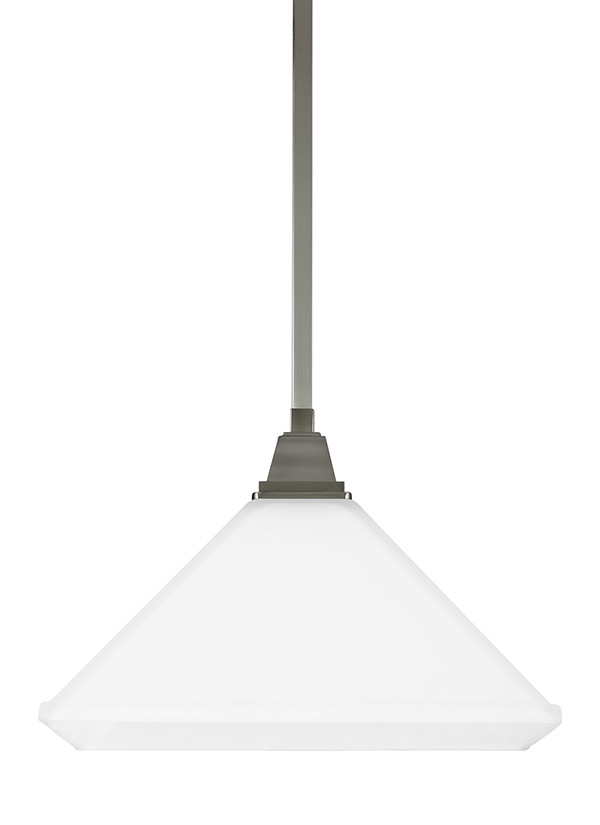

6550401-962: One Light Pendant



Collection:  Denhelm


UPC #:785652241970

Finish:   Brushed Nickel (962)

Dimensions:

Length: 12 1/2"
Width: 12 1/2''
Height: 8''
Overall Height: 57 3/4''
Wire: 120'' (color/Clear)
Chain: 3''
Mounting Proc.: Dual Mount
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Sloped ceiling mounting hardware included
Material List:
1 Body - Steel / Zinc - Brushed Nickel
3 12" Stem - Steel - Brushed Nickel
1 6" Stem - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P6550401-DEN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Glass Glass Etched / White Inside 1   15 1/2 15 1/2 6 1/8   2 1/4
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 2 1/4  4 3/4  4 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 6550401-962 785652241970  15.25 15.25 13.75 1.851 11.5 125 Yes
NJ Pallet   36    48 40 65.5 72.778 414 No
NV Pallet   36    48 40 65.5 72.778 414 No
