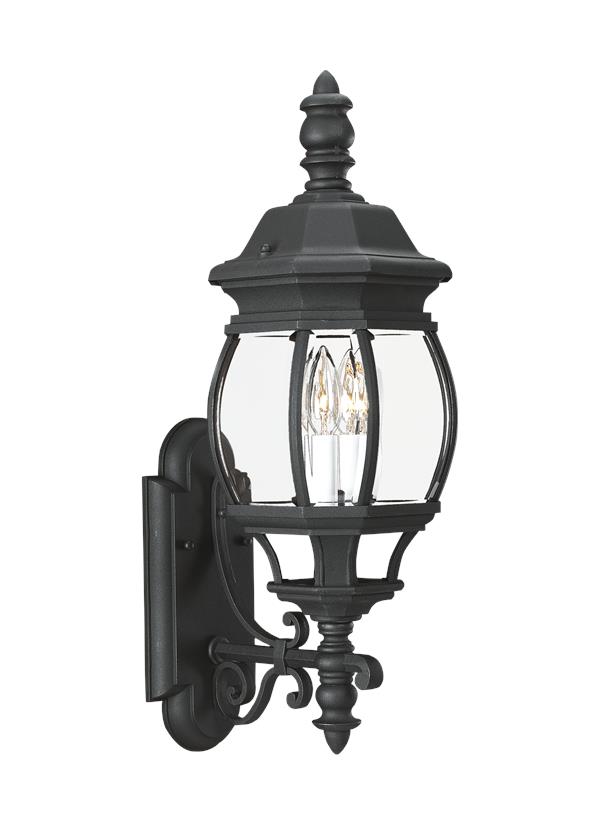

88201-12: Large Two Light Outdoor Wall Lantern


Collection:  Wynfield

Black Cast Aluminum Two Light Outdoor Wall Lantern with Clear Beveled Glass

One Light Wall Lantern in Black Finish

Featured in the decorative Wynfield collection

2 Torpedo Candelabra 60 watt light bulbs

Clear beveled glass panels and Clear beveled glass panels

Clear bulb(s) recommended for this fixture

Easily converts to LED with optional replacement lamps

UPC #:785652882012

Finish:   Black (12)
Dimensions:

Width: 7 3/4''
Height: 23 1/2''
Weight: 7 lbs.
Extends: 10 3/4''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  2 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Die Cast Aluminum - Black
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
English (HC-280)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Panel Glass Clear Beveled 3 G501189-631
Panel Glass Clear Beveled 3 G501190-631
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 12  5  1    16
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 88201-12 1  785652882012  13.5 10.25 20.5 1.642 8.75 0 Yes
Master Pack 88201-12 0  10785652882019
NJ Pallet   49    48 40 74 82.222 428.75 No
NV Pallet   49    48 40 74 82.222 428.75 No
