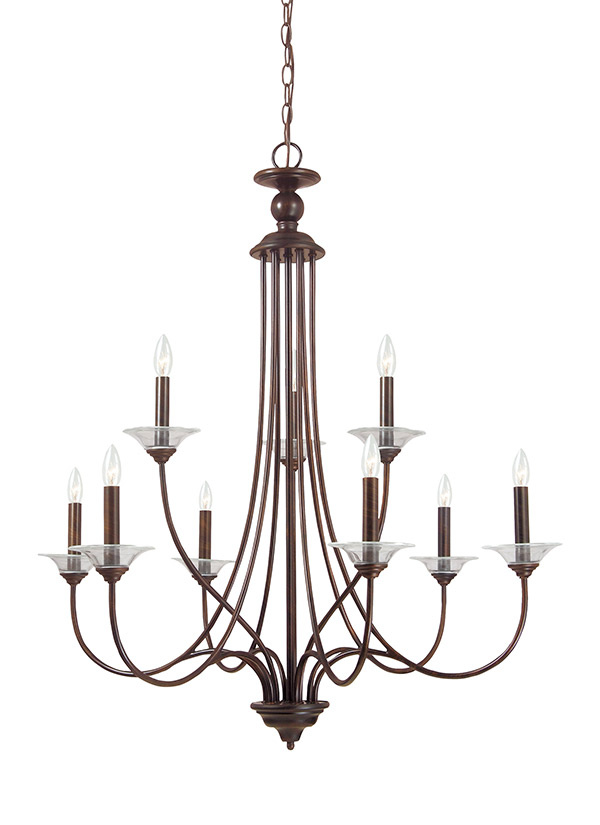

31319-710: Nine Light Chandelier



Collection:  Lemont


UPC #:785652225567

Finish:   Burnt Sienna (710)

Dimensions:

Diameter: 34''
Height: 37 1/2''
Weight: 14.2 lbs.
Overall Height: 160 1/2''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  9 - Candelabra Torpedo 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Burnt Sienna
9 Bobeche - Glass - Clear
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH31319-LMT)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Glass Glass Clear 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 31319-710 785652225567  32.25 8.5 38.25 6.068 18.8 250 Yes
NJ Pallet   12    48 40 72.25 80.278 220.8 No
NV Pallet   12    48 40 72.25 80.278 220.8 No
