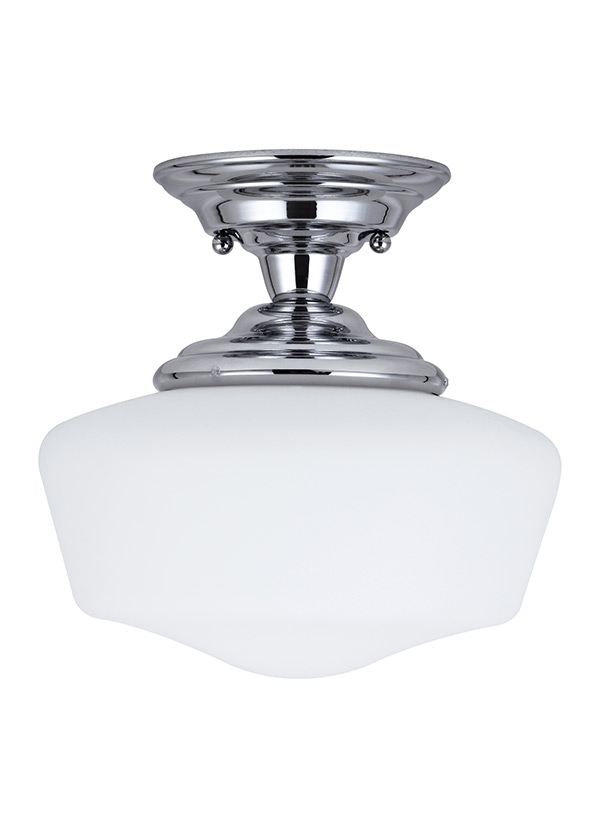

77436-05: One Light Semi-Flush Mount



Collection:  Academy


UPC #:785652227738

Finish:   Chrome (05)

Dimensions:

Diameter: 11 1/2''
Height: 11 3/4''
Weight: 3.7 lbs.
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 75w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990C7743_-ACM)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Glass Glass Satin White 1       7 11 1/2 6     11 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy     6 5/8
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 77436-05 785652227738  14.5 14.5 15 1.825 5.9 250 Yes
NJ Pallet   30    48 40 77 85.556 177 No
NV Pallet   30    48 40 77 85.556 177 No
