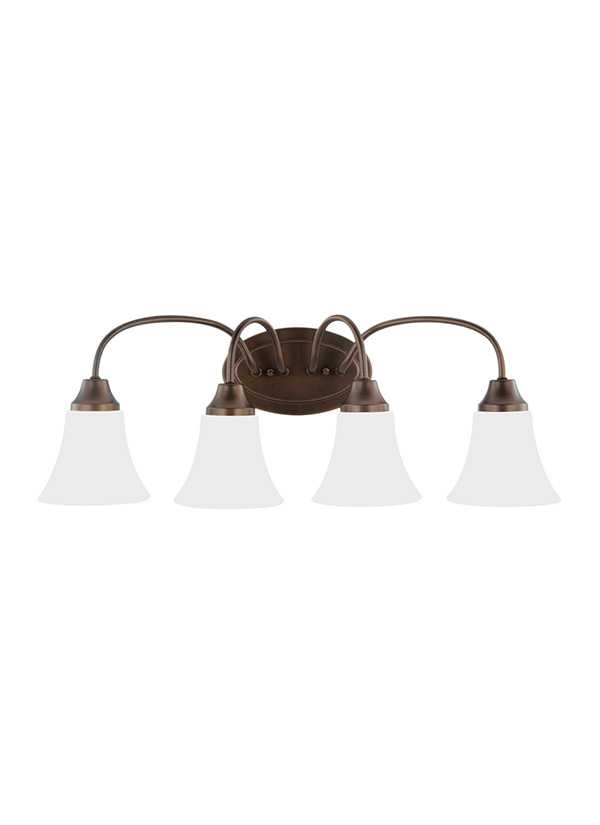

44808-827: Four Light Wall / Bath



Collection:  Holman


UPC #:785652227615

Finish:   Bell Metal Bronze (827)

Dimensions:

Width: 24 1/2''
Height: 9''
Weight: 6 lbs.
Extends: 7 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  4 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bell Metal Bronze
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W4480_-HMN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 4 G510408-619     4 1/4 5 1/4 1 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 1/2  7 1/2  3/4    6 1/2  2 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 44808-827 785652227615  24.75 9 13.25 1.708 8.2 150 Yes
NJ Pallet   40    48 40 71 78.889 328 No
NV Pallet   40    48 40 71 78.889 328 No
