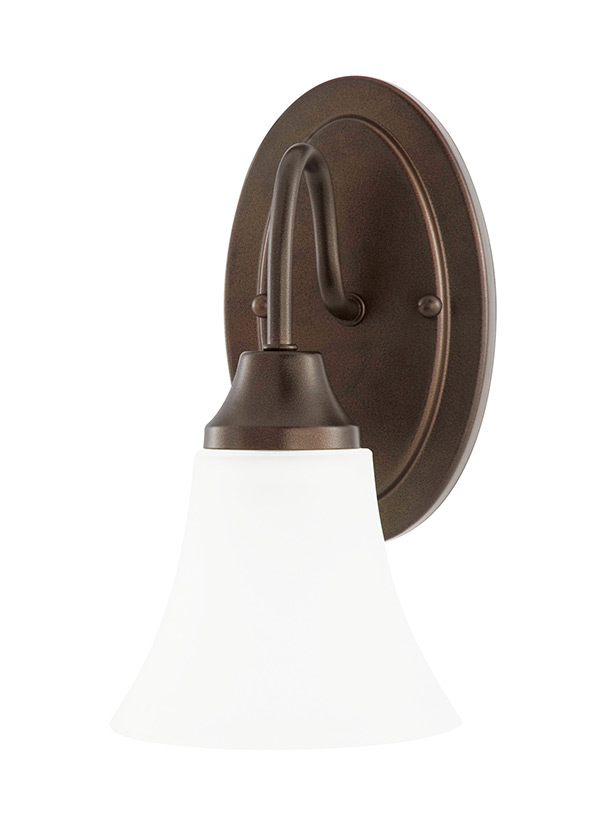

41806-827: One Light Wall / Bath



Collection:  Holman


UPC #:785652227509

Finish:   Bell Metal Bronze (827)

Dimensions:

Width: 5 1/4''
Height: 10 1/4''
Weight: 1.9 lbs.
Extends: 7 1/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Bell Metal Bronze
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W41806-HMN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Satin Etched 1 G510408-619     4 1/4 5 1/4 1 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 7 1/2  4 1/2  3/4    6 1/2  3 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 41806-827 785652227509  8.25 8 12 0.458 2.9 125 Yes
NJ Pallet   160    48 40 71.5 79.444 464 No
NV Pallet   160    48 40 71.5 79.444 464 No
