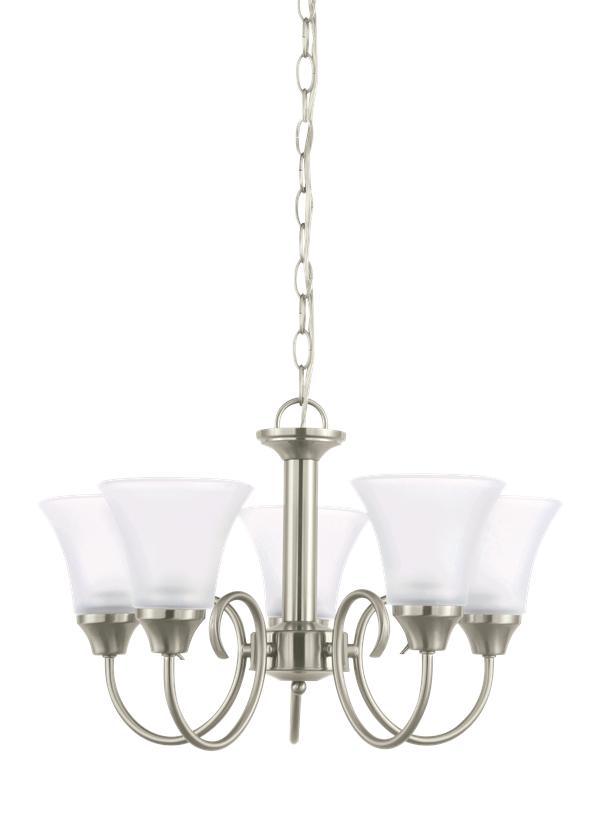

31808-962: Five Light Chandelier


Collection:  Holman

Featured in the decorative Holman collection

5 A19 Medium 60 watt light bulbs

Satin Etched glass shades

Downlight height: 14.75"

Adjustable arms rotate for up or down lighting

UPC #:785652227271

Finish:   Brushed Nickel (962)
Dimensions:

Diameter: 20''
Height: 12 1/2''
Weight: 8.7 lbs.
Overall Height: 51 1/2''
Wire: 72'' (color/Clear)
Chain: 36''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  5 - Medium A19 60w Max. 120v - Not included
Features:
  • Adjustable arms rotate for up or down lighting
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Brushed Nickel
1 Chain - Steel - Brushed Nickel
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH318_-HMN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Satin Etched 5       4 1/4 5 1/4 1 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 31808-962 1  785652227271  21 20.75 8 2.017 10.9 175 Yes
NJ Pallet   40    48 40 75 83.333 436 No
NV Pallet   34    48 40 75 83.333 367.2 No
