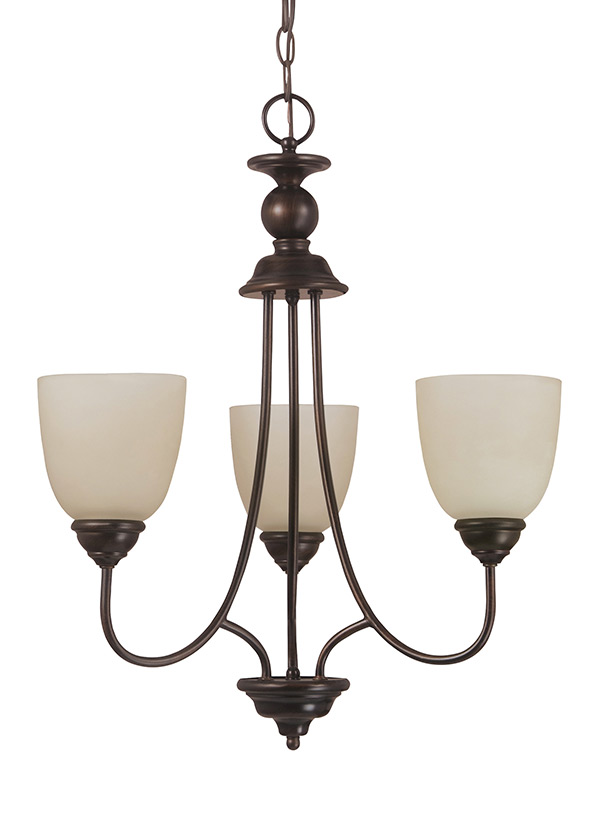

31316BLE-710: Three Light Chandelier



Collection:  Lemont


Direct Replacement: 31316EN-710

UPC #:785652227172

Finish:   Burnt Sienna (710)

Dimensions:

Diameter: 20''
Height: 23 1/4''
Weight: 8.2 lbs.
Overall Height: 146 1/4''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Center Lock-Up
Connection: Mounted To Box
Bulbs:
  3 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • Offers energy saving fluorescent lighting
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Burnt Sienna
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990CH31316-LMT)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Cafe Tint 3       5 5 1 5/8     5
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97102 Frosted   Glass Lens   Self Ballasted CFL GU24 13 13 120v 10000 900   2700 81
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 31316BLE-710 785652227172  25 19.25 8.25 2.298 12.5 150 Yes
NJ Pallet   32    48 40 70 77.778 400 No
NV Pallet   32    48 40 70 77.778 400 No
