44940-05: Two Light Wall / Bath


Collection:  Windgate

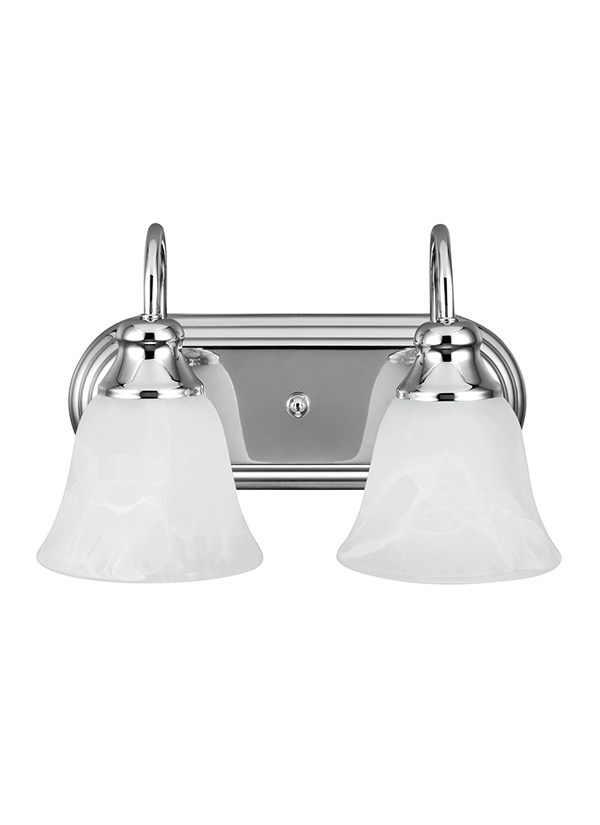

Two Light Wall/Bath in Chrome Finish with Alabaster Glass Shades

Featured in the decorative Windgate collection

2 A19 Medium 100 watt light bulbs

alabaster glass shades

Easily converts to LED with optional replacement lamps

Fixture may be mounted in the up or down position

UPC #:785652226267

Finish:   Chrome (05)
Dimensions:

Width: 12 1/2''
Height: 8 1/4''
Weight: 3.56 lbs.
Extends: 8''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Wall / Bath
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 100w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Fixture may be mounted in the up or down position
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W44940-WDG)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Shade Glass Alabaster 2       4 3/8 5 7/16 1 5/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate   12 7/16  7/8    3 1/4  5
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 44940-05 1  785652226267  17.75 9 9 0.832 4.6 175 Yes
NJ Pallet   80    48 40 73.75 81.944 368 No
NV Pallet   80    48 40 73.75 81.944 368 No
