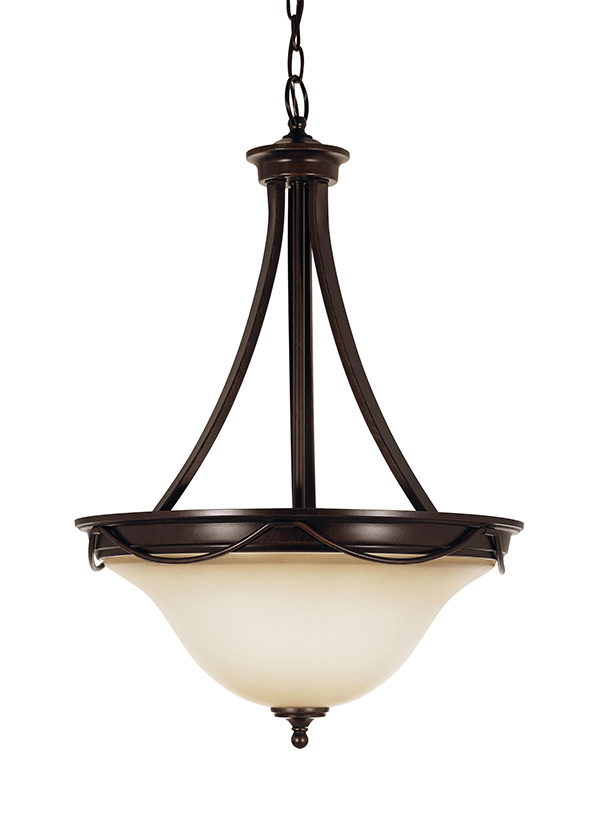

65497-710: Three Light Pendant


Collection:  Park West

UPC #:785652221491

Finish:   Bronze (710)
Dimensions:

Diameter: 18''
Height: 27''
Overall Height: 149''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  3 - Medium A19 60w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P65497_PKW)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Cafe Tint 1       5 1/2 15 7/8 2     15 7/8
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 65497-710 1  785652221491  23 20.25 11.75 3.167 14.4 175 Yes
NJ Pallet   24    48 40 73 81.111 345.6 No
NV Pallet   24    48 40 73 81.111 345.6 No
