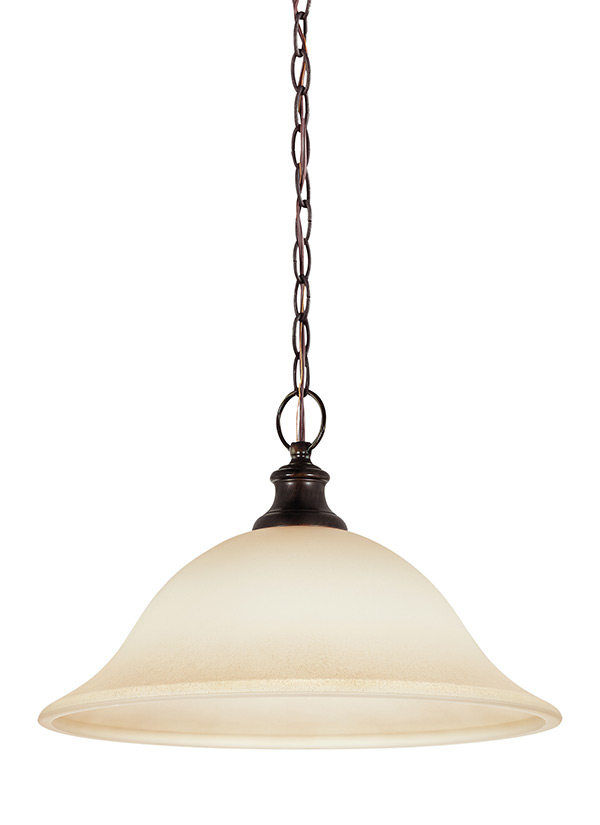

65496BLE-710: One Light Pendant


Collection:  Park West

UPC #:785652222108

Finish:   Bronze (710)
Dimensions:

Diameter: 15 3/4''
Height: 10 1/4''
Overall Height: 132 1/4''
Wire: 144'' (color/Brown)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  1 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • Offers energy saving fluorescent lighting
  • Supplied with wire pre-laced through chain
Material List:
1 Body - Steel - Bronze
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990P65496-PKW)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter		 Shade Top
Length		 Shade Top
Width		 Shade Top
Diameter
Glass Glass Cafe Tint 1       5 1/2 15 3/4 3
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 1      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97102 Frosted   Glass Lens   Self Ballasted CFL GU24 13 13 120v 10000 900   2700 81
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 65496BLE-710 1  785652222108          1 60 Yes
