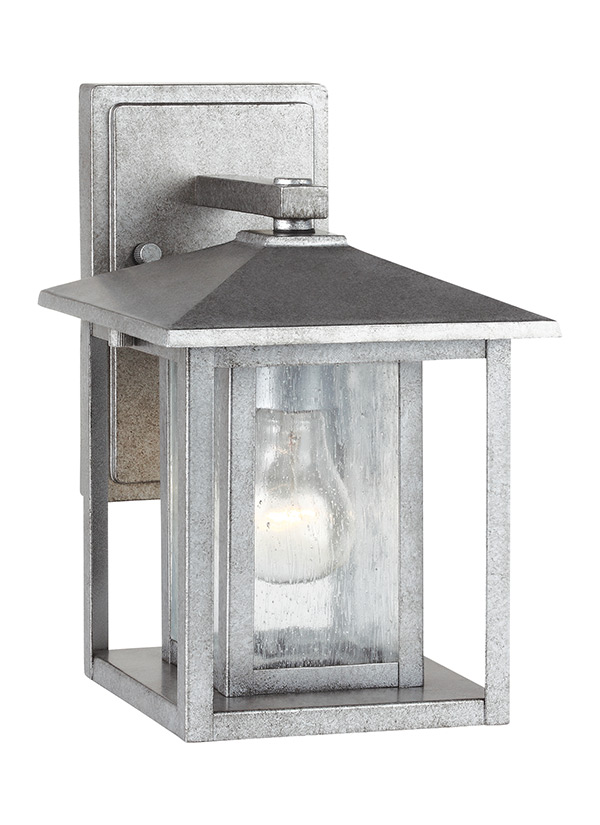

88025-57: One Light Outdoor Wall Lantern



Collection:  Hunnington


UPC #:785652224072

Finish:   Weathered Pewter (57)

Dimensions:

Width: 7''
Height: 11''
Weight: 3.2 lbs.
Extends: 8 1/2''
Wire: 6 1/2''
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Medium A19 60w Max. 120v - Not included
Features:
  • Clear bulb(s) recommended for this fixture
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Aluminum - Weathered Pewter
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (990W88025-HUN)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Clear Seeded 4   3 1/4 3 1/4 6
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 4 3/4    3 1/4  7 3/4
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 88025-57 785652224072  10.8 10 13.75 0.859 4.4 150 Yes
NJ Pallet   70    48 40 73.75 81.944 308 No
NV Pallet   70    48 40 73.75 81.944 308 No
