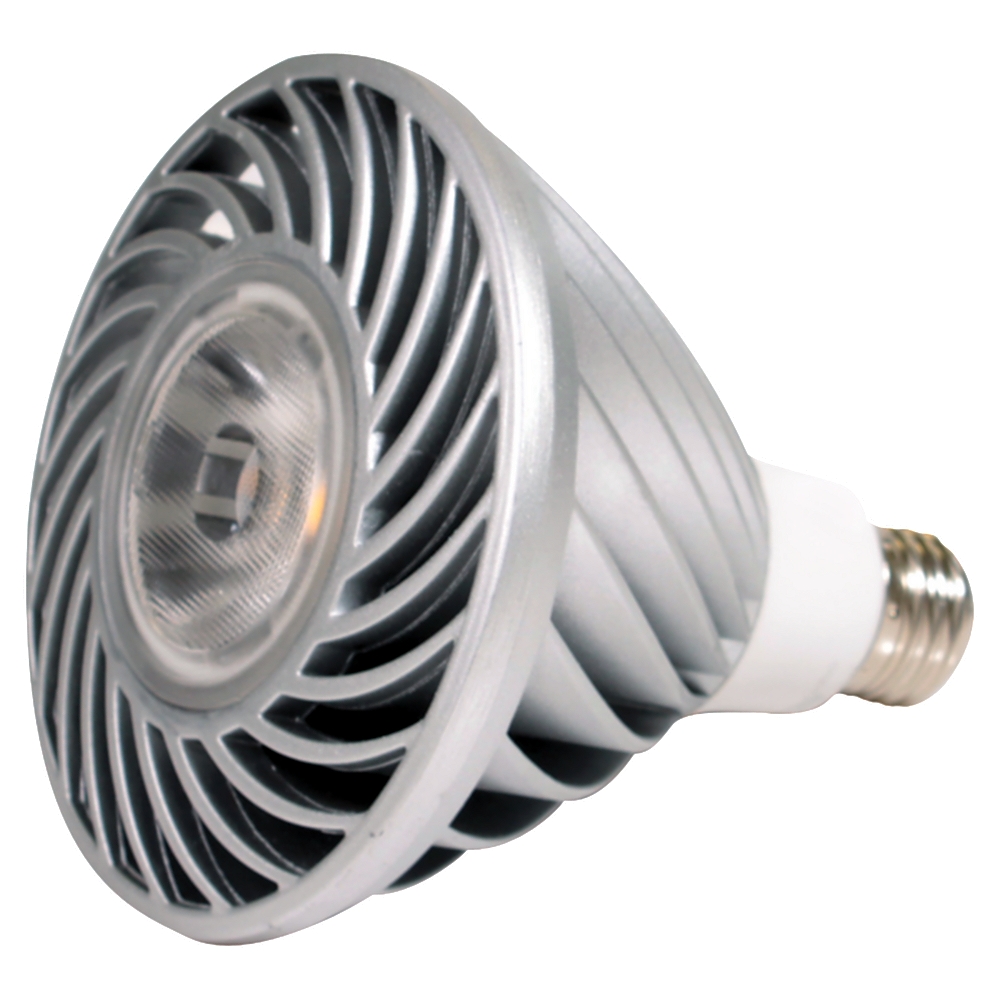

18w 120V PAR38 Medium Base LED 4000K

Alternate Images (click below for detail view)
Catalog View: January 2013 Catalog Supplement
LED Lamp Collection
Designed to work reliably in decorative and functional lighting including recessed luminaires
Specifications
Product #: 97517S
MSRP: $115.20
Dimensions:  D: 4 23/32'' L: 5 3/32''
Volts:  120
Watts:  18
Watts Rated:  18
Hours Rated:  50000
Lumens:  890
Efficacy:  49
Temperature:  4000° K
CRI:  85
Spot Type:  Flood
Beam Spread:  40°
Listings:  UL Listed for Wet Locations
cUL Listed for Wet Locations
Warranty:  5 Year Limited Warranty
Wish List   Compare
Details
Produces 890 lumens, consumes 18W - equivalent to 90W halogen lamp
Replicates the look, feel and performance of halogen, reduces energy and operating costs by 80%
Long 50,000 hours life for maintenance-free operation
Visually pleasing, color accurate illumination CRI 85, 4000K
Thermally efficient for cooler operation and extended lamp life
Dimmable down to 5% using most standard dimmers
Instant-on, no warm up time
Emits no UV or IR, will not heat or fade illuminated objects
Contains no mercury or lead, fully recyleable, RoHS compliant
5 year warranty
While the LED lamp draws as little as 18W continuously, it could have an-in rush current spike and should therefore be treated as a 115W load when sizing dimmers. The recommended maximum number of lamps per an approved 600W dimmer is 5 units. Please refer to list of compatible dimmers located under Additional Information section.
18W PAR38.
The advanced LED technology in Sea Gull Lighting products is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
Detailed Specs:
HTML Specification Sheet
PDF Specification Sheet
Additional Info:
Photometrics
LED Lamp and Dimming Guide

HI-RES Downloads
.jpg
.png

LED Lamp Collection:
Until now, the easiest way to convert lighting fixtures to an energy efficient solution has been to swap out old incandescent lamps for compact fluorescents (CFLs). With the rapid innovation of technology, LED lamps have surpassed CFLs in efficiency and performance features. Unlike most CFLs, LEDs provide light that looks, feels and dims like incandescent while still reducing energy costs by up to 85%. Couple that with a lamp life span of up to 50,000 hours, about 17 years, and it’s easy to see why LEDs are invading homes. Sea Gull Lighting’s line of 18 LED lamps match to 85% of our lighting fixtures, including recessed and enclosed luminaires, giving customers an easy and highly efficient way to “go green” with LED.
97317S 97320S 97321S 97417S 97420S
97421S 97517S 97520S 97521S
