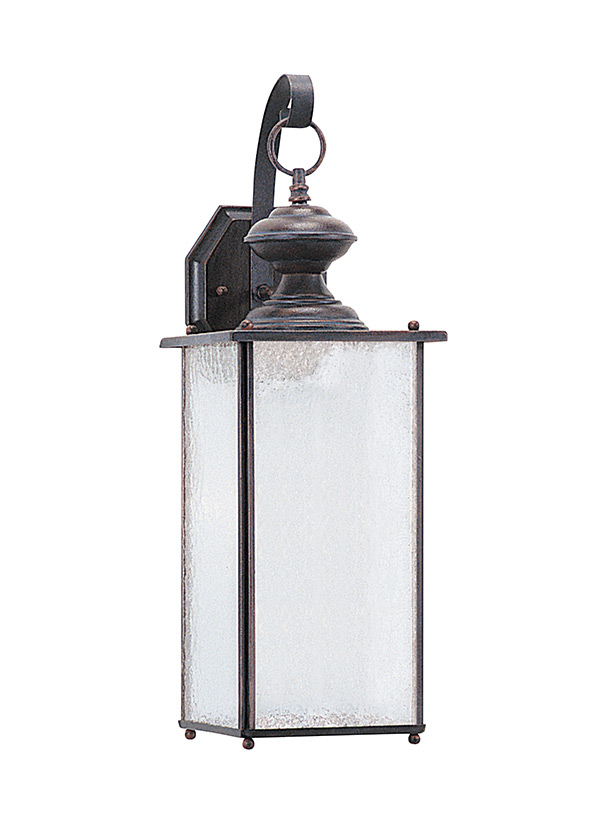

89383BLE-08: One Light Outdoor Wall Lantern



Collection:  Jamestowne


Direct Replacement: 89383EN-08

Fluorescent Outdoor Lantern in Textured Rust Patina Finish with Frosted Seeded Glass

This replaces 8983PBLE-08

UPC #:785652198908

Finish:   Textured Rust Patina (08)

Dimensions:

Width: 7''
Height: 20 1/4''
Extends: 7 3/4''
Wire: 6 1/2'' (color/Black/White)
Mounting Proc.: Cap Nuts
Connection: Mounted To Box
Bulbs:
  1 - Fluorescent GU24 Self Ballasted CFL 26w Max. 120v - included
Features:
  • ENERGY STAR® Qualified
  • Offers energy saving fluorescent lighting
  • Meets Title 24 energy efficiency standards
Material List:
1 Body - Aluminum - Textured Rust Patina
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-922FS)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Panel Glass Frosted Seeded 4     5 7/16 11 15/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Back Plate 5 1/2  4 3/4  3/4    6 1/2  13 3/4
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97106 Frosted   Glass Lens   Self Ballasted CFL GU24 26 26 120v 10000 1800   2700 81
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 89383BLE-08 785652198908  8.5 8.25 21.75 0.883 5.5 125 Yes
NJ Pallet   64    48 40 72 80 352 No
NV Pallet   64    48 40 72 80 352 No
