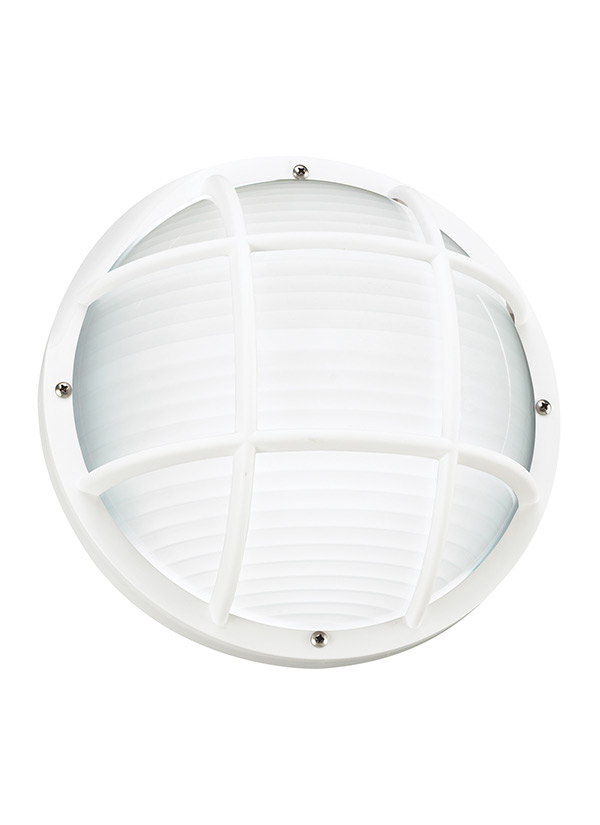

89807BLE-15: One Light Outdoor Wall / Ceiling Mount

	Collection: Bayside
	Direct Replacement: 89807EN-15
	UPC #:785652184949
	Finish: White (15)

Dimensions:


Diameter:	10''
Height:	5''

Weight:

1.8 lbs.

Extends:

5''

Wire:

6 1/2'' (color/Black/White)

Mounting Proc.:

Cap Nuts

Connection:

Mounted To Box

Bulbs:

1 - Fluorescent GU24 Self Ballasted CFL 18w Max. 120v - included

Features:

Fixture may be mounted on wall or ceiling.
ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Meets Title 24 energy efficiency standards

Material List:

1 Body - Polycarbonate - White

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Diffuser

Polycarbonate

Frosted Ribbed

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate					5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97107	Frosted Glass Lens		Self Ballasted CFL	GU24	18	18	120v	10000	1100	2700	82

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	89807BLE-15	1	785652184949	10.5	10.5	6	0.383	2.5	125	Yes
Master Pack	89807BLE-15	12	10785652184946	22.25	19	22	5.382	32.3	125	Yes
NJ Pallet		144		48	40	70.25	78.056	387.6		No
NV Pallet		144		48	40	70.25	78.056	387.6		No
