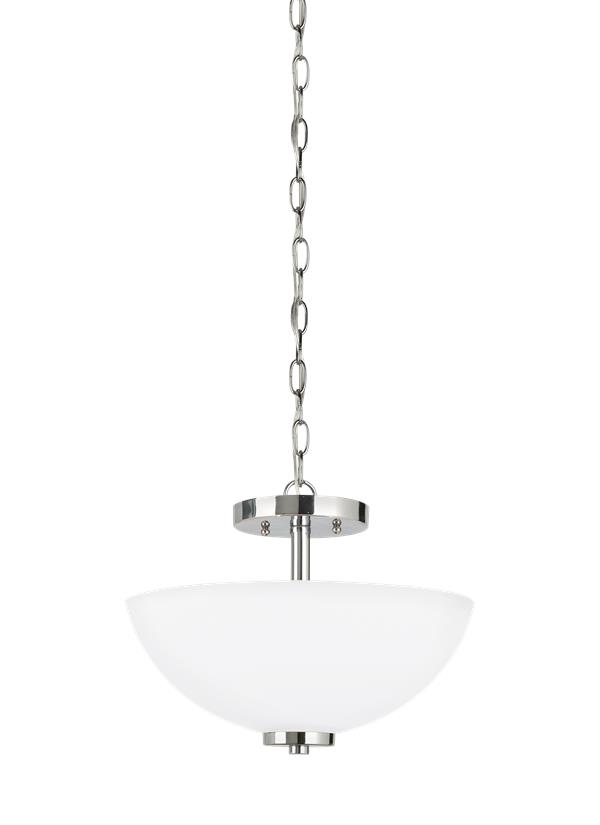

77160-05: Two Light Semi-Flush Convertible Pendant



Collection:  Oslo


UPC #:785652171550

Finish:   Chrome (05)

Dimensions:

Width: 13 1/2''
Height: 11 1/4''
Weight: 5.7 lbs.
Height Flush: 10''
Overall Height: 133 1/2''
Wire: 144'' (color/Clear Silver)
Chain: 120''
Mounting Proc.: Dual Mount
Bulbs:
  2 - Medium A19 100w Max. 120v - Not included
2 - LED Medium A19 8w Max. 120v - Not included
2 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Fixture is dual mount and may be installed semi-flush or as a pendant.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Chain - Steel - Chrome
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Dry Locations
Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-1895FS)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Etched / White Inside 1       5 1/8 12 1/2
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 13/16      5 1/2
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 77160-05 785652171550  16.125 16.125 9.25 1.392 7.1 150 Yes
NJ Pallet   40    48 40 69.5 77.222 284 No
NV Pallet   40    48 40 69.5 77.222 284 No
