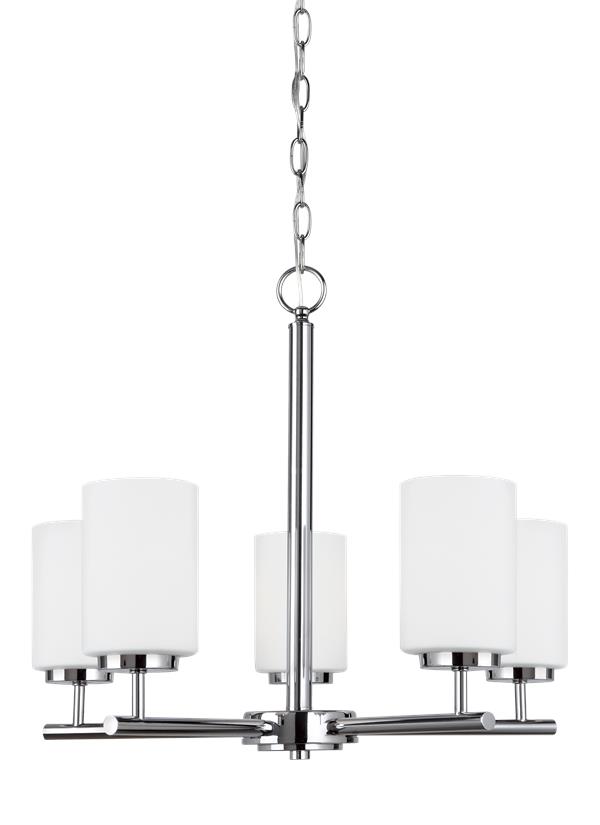

31161-05: Five Light Chandelier



Collection:  Oslo


Supplied with adjustable 12-feet of wire and 10-feet of chain for preferred length

Adjustable arms rotate for up or down lighting for a customized look

For an eco-friendly lighting design, convert to LED bulbs to offer savings and reduce energy

Install a dimmer switch for a warm glow effect and easily change the look and feel of the room

1-Year manufacturer warranty

UPC #:785652171475

Finish:   Chrome (05)

Dimensions:

Diameter: 24''
Height: 20''
Weight: 9.3 lbs.
Overall Height: 152 1/2''
Wire: 144'' (color/Clear Silver)
Chain: 120''
Mounting Proc.: Screw Collar - Chain
Connection: Mounted To Box
Bulbs:
  5 - Medium A19 100w Max. 120v - Not included
Features:
  • Adjustable arms rotate for up or down lighting
  • This fixture features mouth-blown glass and slight variations are an inherent part of the handcrafting process.
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
  • Supplied with wire pre-laced through chain
Material List:
1 Chain - Steel - Chrome
1 Body - Steel - Chrome
Safety Listing:
  Safety Listed for Dry Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (31160 31171 31172)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Cased Opal Etched 5       5 29/32 3 15/16
Backplate / Canopy Details:
Type Height / Length Width Depth Diameter Outlet Box Up Outlet Box Down
Canopy 13/16      5 1/2
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 31161-05 785652171475  23.25 23 8.25 2.553 11.8 0 Yes
Master Pack 31161-05 10785652171472
NJ Pallet   28    48 40 72 80 330 No
NV Pallet   24    48 40 70 77.778 284 No
