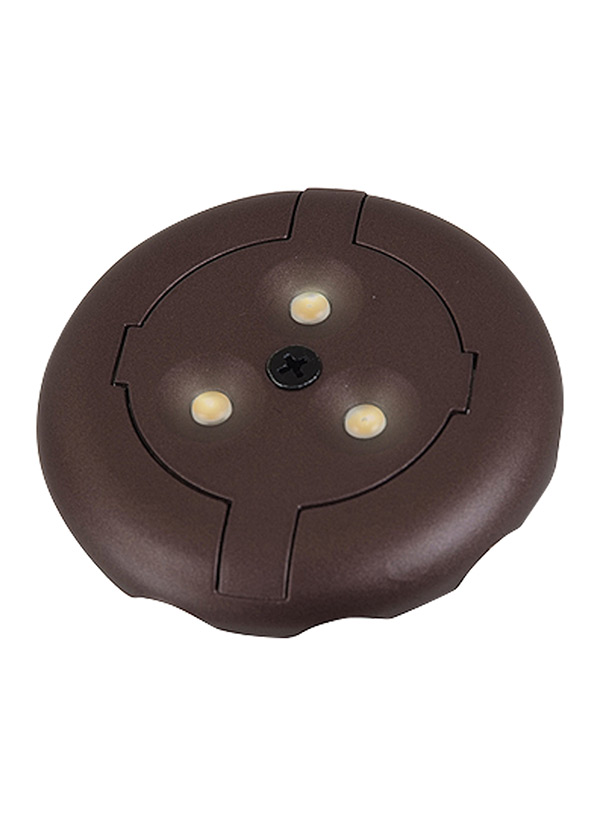

98860SW-787: 12V LED Disk Light 3000K


Collection:  LED Disks
Ambiance LED Disk Lighting is ideal for residential, commercial and retail applications with its ample lumen output and versatility. Ambiance LED Disks are dimmable on magnetic and electronic low voltage systems. For magnetic systems, a standard incandescent or magnetic low voltage (MLV) dimmer can be used. For electronic, an electronic low voltage (ELV) dimmer is recommended.
170 lumens, 4 watts, 42 lumens per watt
Includes 36" lead wire for connection to additional LED disks, optional mounting hub or Ambiance Lx system via fused plug
Increase light output up to 240 lumens per disk by powering with 12VDC power supply
The look, feel and performance of halogen/xenon pucks while reducing energy and operating cost by up to 80%
Delivers light output of 170 lumens using only 4 watts for efficacy of 42 lumens per watt
Contains 3 integrated multi-LED Nichia LED chip packages
Long 40,000 hours life - last 20X's longer than halogen for mainteance free operation
Dimmable with wide range on incandescent and electronic low voltage dimmers on 12V electronic and magnetic transformers
Configurable and linkable for easier multiple unit installations. Daisy chain up to 6 disks from one to another or hub and spoke mount using optional mounting hub
Color accurate illumination 85CRI, 3000K
Low profile, aluminum housing for cooler operation and maximum LED life
Available in 3 painted finishes; white, black, bronze and (plated) tinted aluminum
Surface or recessed mounting
Can be connected to and dimmed using 12VAC Ambiance Lx linear lighting system with optional fused plug 9488-12/15
UPC #:785652153136
Finish:   Plated Bronze (787)
Diameter: 3''
Height: 5/8''
Wire: 36'' (color/Black)
Mounting Proc.: Mounting Strap
Connection: Both
Volts: 12
Watts: 4
Watts Consumed: 4
Watts Rated: 4
Hours Rated: 40000
Lumens: 170
Bulb Temp: 3000 °K
CRI: 85
  • This advanced LED technology is carefully designed and selected to consist of the highest quality LED chipsets for superior performance and reliability.
Material List:
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-1887FS)

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 98860SW-787 785652153136  3.75 3.75 1.25 0.01 0.2 65 Yes
Master Pack 98860SW-787 10785652153133  6.5 4.25 4.25 0.068 0.9 65 Yes
Shipping Master   100  20785652153130   21.75 14.25 9.5 1.704 20.4 65 Yes
