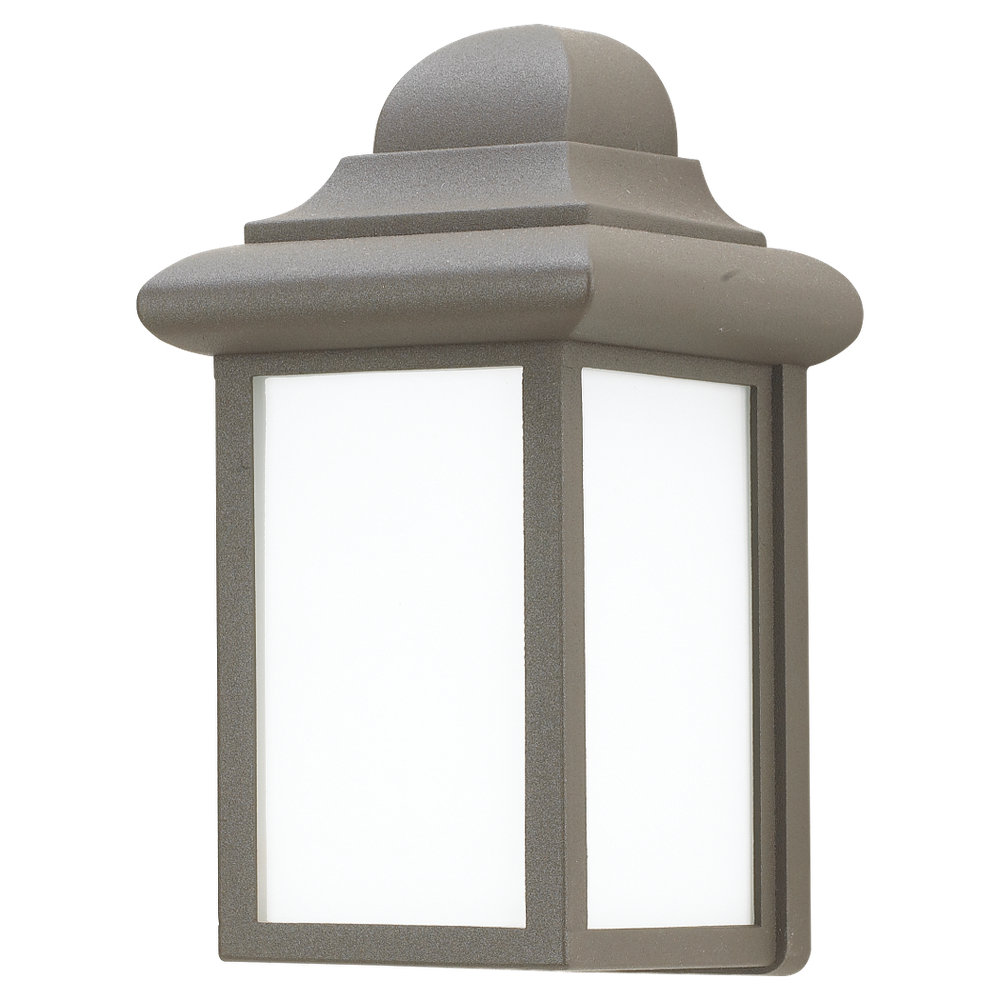

8988-10: OUTDOOR WALL LANTERN

	Collection: Mullberry Hill
	One Light Outdoor Wall Fixture in Bronze Finish with White Flat Glass. Decorative Panel Molding.
	Fluorescent outdoor wall lantern in bronze finish over cast aluminum.
	UPC #:785652898808
	Finish: Bronze (10)

Dimensions:


Width:	5 3/4''
Height:	8 3/4''

Extends:

4 1/2''

Wire:

6 1/2''

Connection:

Mounted To Box

Bulbs:

1 - Fluorescent GX23-2 Quad 2-Pin 13w Max. 120v - Not included

Features:

Offers energy saving fluorescent lighting

Material List:

1 Body - Die Cast Aluminum - Bronze

Safety Listing:

Safety Listed for Wet Locations
Safety Listed for Wet Locations

Instruction Sheets:

English (HC-550)
French (F-009)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Panel

Glass

Smooth White

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Back Plate					5	3 3/4

Replacement Bulb Data:

Product #		Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
9748				13		120v	10000	860	2700	82
9763	Frosted Glass Lens	Tubular	G24q-1	13		120v	10000	860	2700	84

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	8988-10	1	785652898808	6.5	5.5	9.5				Yes
Master Pack		6	10785652898805	17.25	14	10.5	1.467	17.4	85	Yes
NJ Pallet		252		48	40	76	84.444	730.8		No
NV Pallet		216		48	40	68.5	76.111	626.4		No
