19" LED Undercabinet Warm White

Alternate Images (click below for detail view)
Catalog Views: LPC Conversion to Sea Gull Lighting Catalog
January 2011 Decorative Catalog
Ambiance® LED Task Lighting Collection

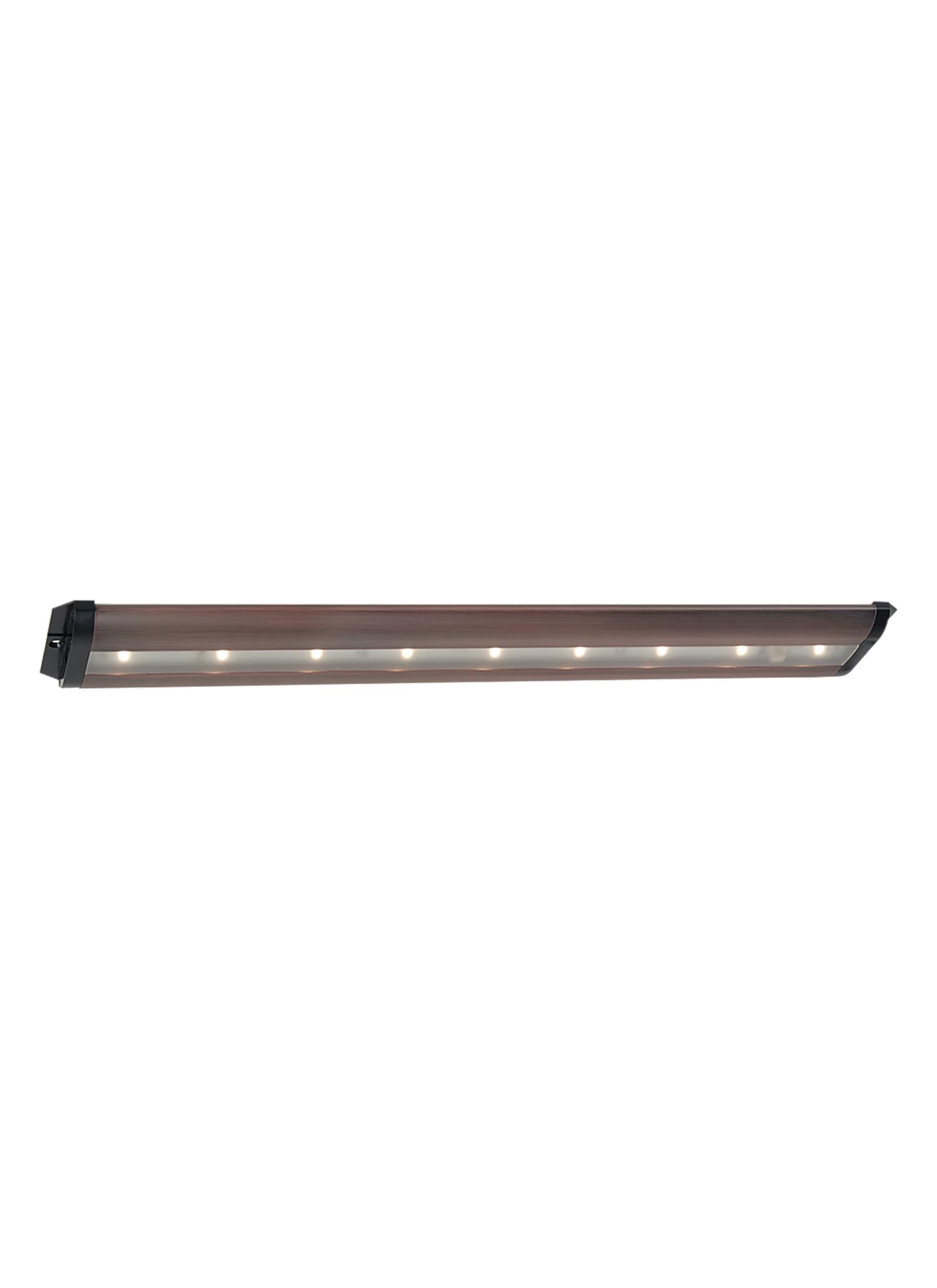

19" LED Warm White Undercabinet in Plated Bronze Finish with Frosted Diffuser.
550 lumens, 13.9watts, 40 lumens per watt
Sea Gull LED task lights require a remote LED power supply which is sold separately. Select either a 30W plug-in 24VDC LED power supply SGL P/N 98623S-12 or a 60W remote hardwire 24VDC LED power supply SGL P/N 98620S-12/15 and the appropriate length connection cord. Use connection cords (sold separately) to link from a remote power supply to the first task light in a run or to link multiple LED task lights together in a continuous run. Connection cords are available lengths of 6 in. (P/N 98627S-12/15), 12 in. (P/N 98628S-12/15), 18 in. (98629S-12/15) 24 in. (P/N 98631S-12/15) and 10 ft (P/N 98630S-12/15)
Specifications
Product #: 98602SW-787
MSRP: $228.00
Finish: Plated Bronze
Dimensions:  L: 19'' W: 3'' H: 9/16''
Listings:  ETL Listed for Damp Locations
cETL Listed for Damp Locations
Wish List   Compare
Details
Delivers light output of 550 lumens using 13.9 watts for efficacy of 40 lumens per watt
Low profile for hidden aesthetic
Linkable for ease of installation using linking cords (sold separately) up to the maximum wattage of the LED power supply selected
Integrated high power LEDs
On/Off switch
CRI: 85
CCT: 3000K
Useful Life: 40,000 hours
Lower operating temperature than traditional light sources
Delivers maximum brightness using up to 85% less energy - up to 4X's more efficient than halogen
The advanced LED technology in Sea Gull Lighting products helps to protect our environment. Not only by using less energy, but by reducing the amount of mercury and hazardous materials that end up in our Earth's land-fills.

Detailed Specs:
HTML Specification Sheet
PDF Specification Sheet
Other Finishes:
White
Tinted Aluminum
How to Install:
Trilingual (English, Spanish, and French)
Additional Info:
Lighting Facts Label
Photometric summary report
IES photometric data

HI-RES Downloads
.jpg
.png
