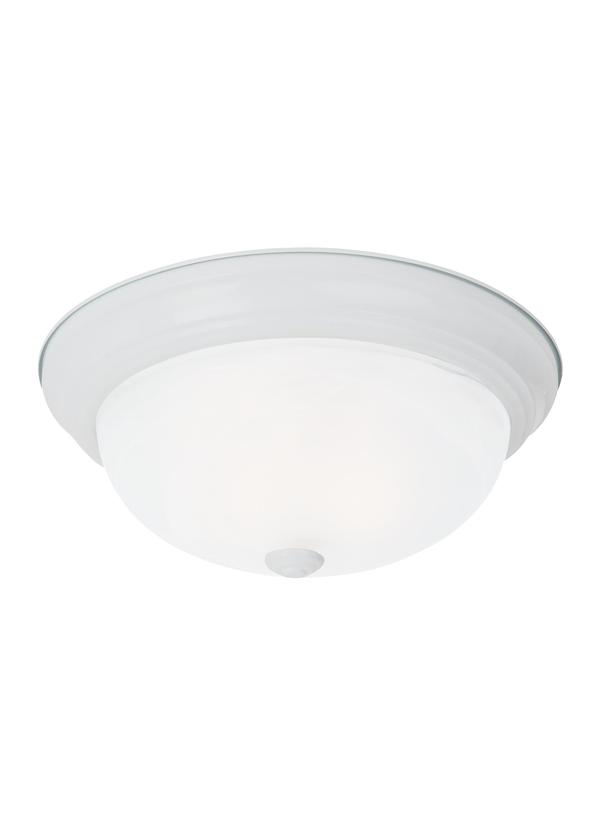

75942-15: Two Light Ceiling Flush Mount



Collection:  Windgate


Two Light Ceiling Flush Mount in White Finish with Alabaster Glass

UPC #:785652020384

Finish:   White (15)

Dimensions:

Diameter: 13''
Height: 5 1/4''
Wire: 6 1/2''
Mounting Proc.: Key Slots
Connection: Mounted To Box
Bulbs:
  2 - Medium A19 60w Max. 120v - Not included
2 - LED Medium A19 8w Max. 120v - Not included
2 - LED Medium A19 13.5w Max. 120v - Not included
Features:
  • Easily converts to LED with optional replacement lamps
  • Meets Title 24 energy efficiency standards
  • Title 24 compliant if used with Joint Appendix (JA8) approved light bulbs listed in the California Energy Commission Appliance database.
Material List:
1 Body - Steel - White
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
Bilingual (English - French) (HC-1700FB)

Shade / Glass / Diffuser Details:
Part Material Finish Quantity Item Number Length Width Height Diameter Fitter
Diameter
Shade Top
Length
Shade Top
Width
Shade Top
Diameter
Shade Glass Alabaster 1       3 5/16 9 29/32 15/16
Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
97308S Frosted     A19 E-26 Medium 8 8 120v 50000 450   3000 85
97408S Frosted     A19 E-26 Medium 8 8 120v 50000 450   2700 85
97309S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   3000 85
97409S Frosted     A19 E-26 Medium 13.5 13.5 120v 50000 800   2700 85
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 75942-15 785652020384  13.5 6 14 0.656 4.2 125 Yes
NJ Pallet   99    48 40 71.5 79.444 415.8 No
NV Pallet   99    48 40 71 78.889 415 No
