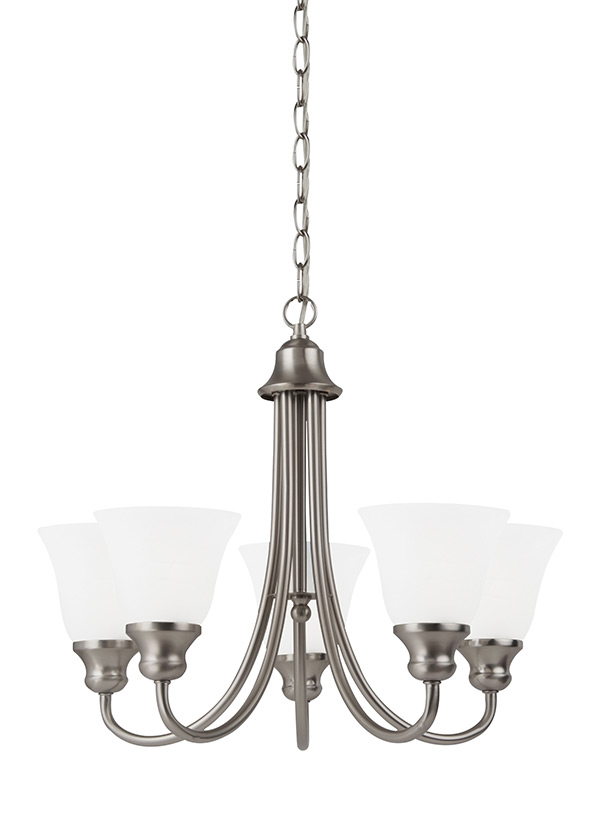

35940BLE-962: Five Light Chandelier

	Collection: Windgate
	Direct Replacement: 35940EN-962
	Fluorescent Five Light Chandelier in Brushed Nickel Finish with Alabaster Glass Shades
	UPC #:785652020360
	Finish: Brushed Nickel (962)

Dimensions:


Diameter:	20 1/2''
Height:	16 3/4''

Weight:

8.83 lbs.

Overall Height:

54 1/2''

Wire:

72'' (color/Clear Silver)

Chain:

36''

Mounting Proc.:

Center Lock-Up

Bulbs:

5 - Fluorescent GU24 Self Ballasted CFL 13w Max. 120v - included

Features:

ENERGY STAR® Qualified
Offers energy saving fluorescent lighting
Meets Title 24 energy efficiency standards
Supplied with wire pre-laced through chain

Material List:

1 Body - Steel - Brushed Nickel

1 Chain - Steel - Brushed Nickel

Safety Listing:

Safety Listed for Dry Locations
Safety Listed for Dry Locations

Instruction Sheets:

Bilingual (English - French) (HC-1707FB)

Shade / Glass / Diffuser Details:

Part

Material

Finish

Quantity

Item Number

Length

Width

Height

Diameter

Fitter
Diameter

Shade Top
Length

Shade Top
Width

Shade Top
Diameter

Shade

Glass

Alabaster

4 3/8

5 7/16

1 5/8

Backplate / Canopy Details:

Type	Height / Length	Width	Depth	Diameter	Outlet Box Up	Outlet Box Down
Canopy	7/8			5

Replacement Bulb Data:

Product #			Type	Base	Watts	Watts Consumed	Volts	Hours	Lumens	Temp (°K)	CRI
97102	Frosted Glass Lens		Self Ballasted CFL	GU24	13	13	120v	10000	900	2700	81

Shipping Information:

Package Type	Product #	Quantity	UPC	Length	Width	Height	Cube	Weight	Frt. Class	UPS Ship
Individual	35940BLE-962	1	785652020360	20	10	17.75	2.054	10.9	175	Yes
NJ Pallet		40		48	40	75	83.333	436		No
NV Pallet		40		48	40	75	83.333	436		No
