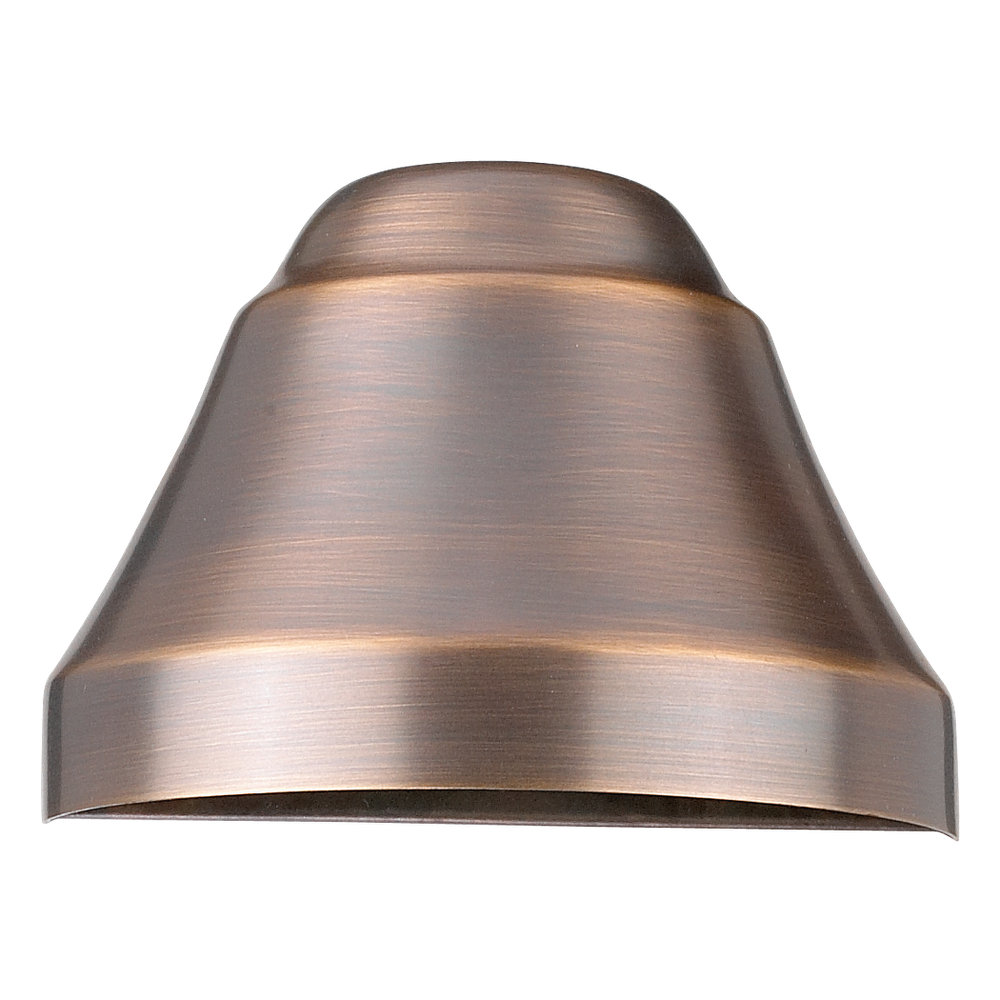

92064-834: Deck Light

Landscape Deck Light in Weathered Bronze Finish

UPC #:785652920646

Finish:   Weathered Bronze (834)
Dimensions:

Width: 3 1/4''
Height: 2 3/4''
Extends: 1 3/4''
Wire: 36'' (color/Black)
Bulbs:
  1 - Xenon Wedge T5 18w Max. 12v - included
1 - Wedge T5 8w Max. 12v - Not included
1 - Wedge T5 12w Max. 12v - Not included
1 - Wedge T5 18w Max. 12v - Not included
Material List:
1 Body - Brass - Weathered Bronze
Safety Listing:
  Safety Listed for Wet Locations
Instruction Sheets:
Trilingual (English, Spanish, and French) (HC-1030FS)

Replacement Bulb Data:
Product #     Type Base Watts Watts Consumed Volts Hours Lumens Temp (°K) CRI
9774 Clear   Glass Lens Xenon T5 Wedge 18 16.2 12v 10000 210   2800 90
9776 Clear   Glass Lens   T5 Wedge 8 8 12v 2500 57   2650 90
9777 Clear   Glass Lens   T5 Wedge 12 11.6 12v 2000 120   2750 90
9778 Clear   Glass Lens   T5 Wedge 18 16.2 12v 2000 210   2800 90
Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 92064-834 1  785652920646  4.875 2.75 3.625 0.028 1.166 60 Yes
Master Pack   3  10785652920643  9.5 5.5 4.75 0.144 3.52 60 Yes
NJ Pallet   1575    48 40 72 80 1848 No
NV Pallet   1575    48 40 72 80 1848 No
