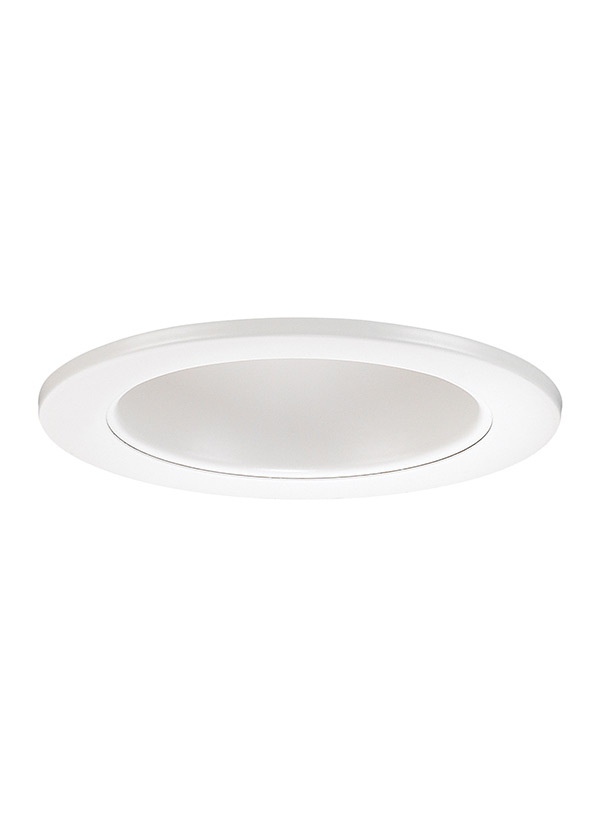

1162AT-14: 4" Multiplier Trim


Collection:  Recessed Trims

Incandescent Mini-Recessed Multiplier w/ White Trim and Baffle

Same as 1162-14 but with AT - Air Tight gasket

Featured in the decorative Recessed Trims collection

Bulb selection for recessed lighting depends on both the trim and housing selection; refer to the manufacturer's website for correct lamping instructions

Meets Title 24 energy efficiency standards

C-UL-US listed for damp locations

A great choice for your do-it-yourself project

UPC #:785652116247

Finish:   White Trim / Baffle (14)
Dimensions:

Diameter: 4 7/8''
Height: 2 7/8''
Weight: 0.25 lbs.
Features:
  • Meets Title 24 energy efficiency standards
Material List:
1 Body - Steel - White
1 Aluminum Multiplier - Aluminum - White Trim / Baffle
Safety Listing:
  Safety Listed for Damp Locations
Instruction Sheets:
English (HC-933)

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 1162AT-14 1  785652116247  5 5 3 0.043 0.5 0 Yes
Master Pack   12  10785652116244  19.25 10.75 5.78 0.692 6.5 0 Yes
NJ Pallet   924    48 40 70 77.778 500.5 No
NV Pallet   924    48 40 70 77.778 500.5 No
