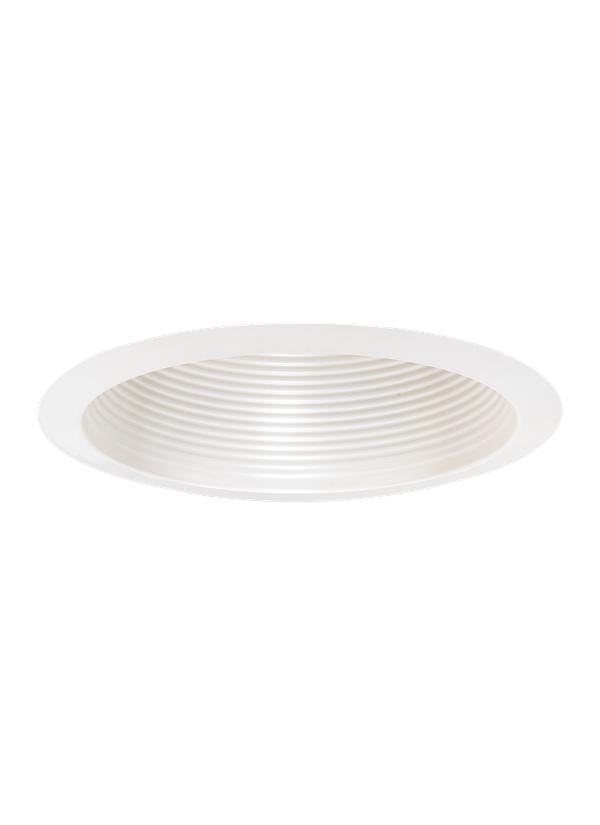

1158AT-14: 6" Deep Cone Baffle Trim



Collection:  Recessed Trims


Incandescent Recessed White Step Baffle with Trim in White Finish.

IC Airtight Shallow: PAR-30S 50w, PAR-30L 75w, BR-30 65w

Featured in the decorative Recessed Trims collection

Bulb selection for recessed lighting depends on both the trim and housing selection; refer to the manufacturer's website for correct lamping instructions

Meets Title 24 energy efficiency standards

UL listed for damp locations

A great choice for your do-it-yourself project

UPC #:785652115813

Finish:   White Trim / Baffle (14)

Dimensions:

Diameter: 7 1/4''
Height: 3 7/8''
Weight: 0.35 lbs.
Features:
  • Meets Title 24 energy efficiency standards
Material List:
1 Body - Aluminum - White Trim / Baffle
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 1158AT-14 785652115813  8.18 7.78 5 0.184 0.5 0 Yes
Master Pack   10785652115810  10.5 9 9 0.492 3.6 0 Yes
NJ Pallet   960    48 40 75 83.333 576 No
NV Pallet   960    48 40 75 83.333 576 No
