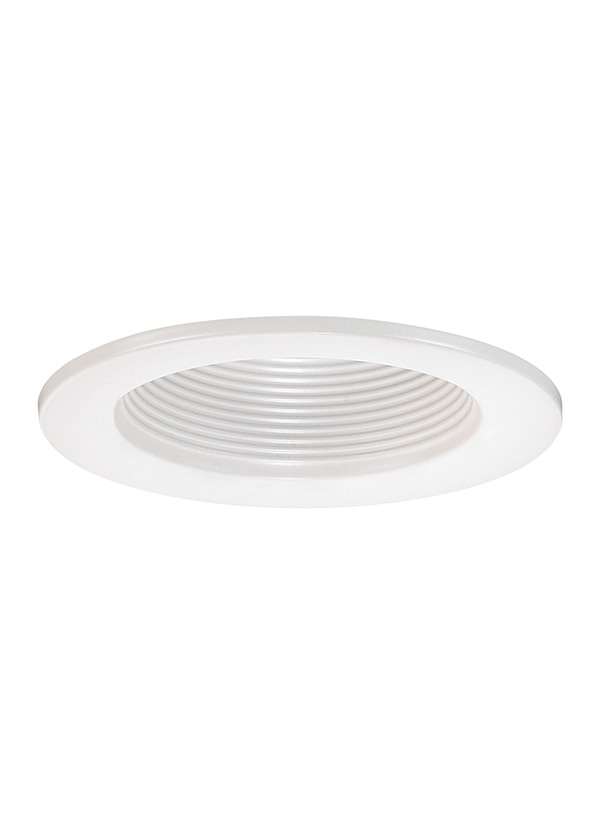

1156AT-14: 4" Baffle Trim


Collection:  Recessed Trims

Incandescent Mini-Recessed Multiplier w/ White Trim and Baffle

Same as 1156-14 but with AT - Airt Tight gasket

Featured in the decorative Recessed Trims collection

Bulb selection for recessed lighting depends on both the trim and housing selection; refer to the manufacturer's website for correct lamping instructions

Meets Title 24 energy efficiency standards

UL listed for damp locations

A great choice for your do-it-yourself project

UPC #:785652115615

Finish:   White Trim / Baffle (14)
Dimensions:

Diameter: 4 7/8''
Height: 1 7/8''
Weight: 0.25 lbs.
Features:
  • Meets Title 24 energy efficiency standards
Material List:
1 Body - Steel - White
1 Baffle - Steel - White Trim / Baffle
Safety Listing:
  Safety Listed for Damp Locations
Safety Listed for Damp Locations
Instruction Sheets:
English (HC-933)

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 1156AT-14 1  785652115615  5.25 5.25 2.75 0.044 0.35 0 Yes
Master Pack   12  10785652115612  11 10.75 9 0.616 5.8 0 Yes
NJ Pallet   1224    48 40 72 80 591.6 No
NV Pallet   1224    48 40 72 80 591.6 No
