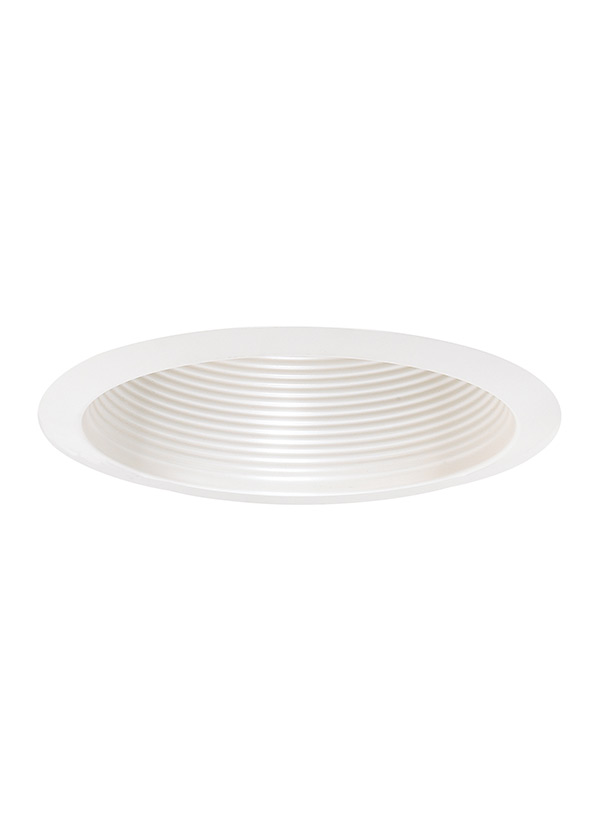

1154AT-14: 6" Open Cone Shower Trim



Collection:  Recessed Trims


Recessed White Step Baffle with Trim in White Finish.

Same as 1154 trim but with AT - Air Tight gasket

Featured in the decorative Recessed Trims collection

Bulb selection for recessed lighting depends on both the trim and housing selection; refer to the manufacturer's website for correct lamping instructions

Meets Title 24 energy efficiency standards

UL listed for wet locations

A great choice for your do-it-yourself project

UPC #:785652115127

Finish:   White Trim / Baffle (14)

Dimensions:

Diameter: 7 5/16''
Height: 5 3/8''
Weight: 0.35 lbs.
Features:
  • Meets Title 24 energy efficiency standards
Material List:
1 Body - Aluminum - White Trim / Baffle
1 Baffle - Aluminum - White Trim / Baffle
Safety Listing:
  Safety Listed for Wet Locations
Safety Listed for Wet Locations
Instruction Sheets:
Bilingual (English - French) (HC-933FB)

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 1154AT-14 785652115127  7.75 7.75 5.6 0.195 0.45 0 Yes
Master Pack   12  10785652115124  19 8.75 8.75 0.842 6.6 0 Yes
NJ Pallet   960    48 40 72 80 528 No
NV Pallet   960    48 40 72 80 528 No
