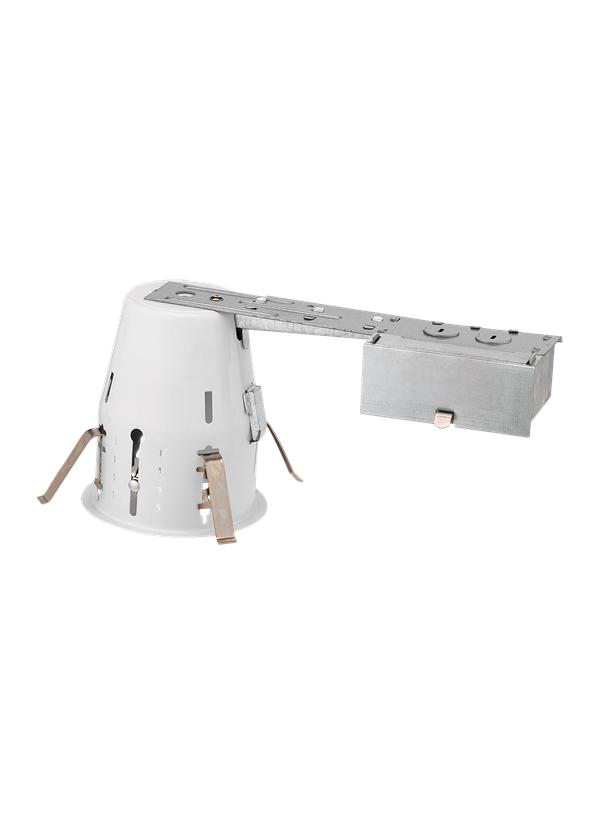

1115: 4" Remodel Non-IC Recessed Housing



Collection:  Recessed Lighting


Non-IC 4" Housing Remodel

Safe- Thermally Protected: Thermal protector safeguards against overheating caused by improper insulating and overlamping.

Easy Access Housing: Housing removable for easy access to junction box.

Easy Installation: Provided with mounting clips for fast, easy installation.

Adjustable socket: Adjustable socket assembly provdes flexibility in lamping options.

Time-Saving Junction Box Design: Junction box saves installation time with snap-on covers, pry-out knock-outs, riveted ground wire, and through-circuit wiring, with 2-in, 2-out #12 wire.

Safe- Listed for Damp Location: Listed for use where insulation is kept at least 3" away from housing.

UPC #:785652111501
Specification Images:

Dimensions:

Diameter: 4 1/16''
Length: 12"
Height: 5 5/8''
Features:
  • Easily converts to LED with optional replacement lamps
Material List:
1 Housing - Steel - Raw Steel
Safety Listing:
  Safety Listed for Damp Locations / Non-IC
Safety Listed for Damp Locations / Non-IC
Instruction Sheets:
English (A-724L)

Shipping Information:
Package Type Product # Quantity UPC Length Width Height Cube Weight Frt. Class UPS Ship
Individual 1115 785652111501  16 5 6.5 0.301 1.4 85 Yes
Master Pack   10785652111508  17 14 7 0.964 11.8 85 Yes
NJ Pallet   420    48 40 72 80 826 No
NV Pallet   360    48 40 72 80 708 No

Trim
11090AT-15
RECESSED TRIM
White Aluminum Reflector
White Steel Trim
Maximum Wattage:
8w PAR20
35w PAR20
Suitable For Shower Light
11091AT-15
4" Wall Wash Trim
White Steel Baffle
White Aluminum Reflector
White Steel Trim
Maximum Wattage:
35w PAR20
8w PAR20
11092AT-15
4" Shower Trim
Frosted Glass Lens
White Aluminum Reflector
White Aluminum Trim
Maximum Wattage:
35w PAR20
8w PAR20
Suitable For Shower Light
11094AT-14
RECESSED TRIM
White Trim / Baffle Aluminum Trim
Maximum Wattage:
50w PAR20
8w PAR20
Suitable For Shower Light
1152AT-15
4" Frosted Glass Shower T
Frosted Glass Lens
Polished Aluminum Aluminum Reflector
White Steel Trim
Maximum Wattage:
35w PAR20
8w PAR20
Suitable For Shower Light
1153AT-15
4" Fresnal Glass Shower T
Clear Glass Lens
Polished Aluminum Aluminum Reflector
White Steel Trim
Maximum Wattage:
35w PAR20
8w PAR20
Suitable For Shower Light
1156AT-14
4" Baffle Trim
White Trim / Baffle Steel Baffle
White Steel Trim
Maximum Wattage:
50w PAR20
8w PAR20
1156AT-15
4" Baffle Trim
Black Steel Baffle
White Steel Trim
Maximum Wattage:
50w PAR20
8w PAR20
1162AT-14
4" Multiplier Trim
White Trim / Baffle Aluminum Aluminum Multiplier
White Aluminum Trim
Maximum Wattage:
50w PAR20
8w PAR20
1162AT-172
RECESSED TRIM
Antique Bronze - White Aluminum Reflector
White Steel Trim
Maximum Wattage:
50w PAR20
8w PAR20
1162AT-22
RECESSED TRIM
Polished Aluminum Aluminum Baffle
White Aluminum Trim
Maximum Wattage:
50w PAR20
8w PAR20
1162AT-71
RECESSED TRIM
Antique Bronze Aluminum Reflector
Antique Bronze Steel Trim
Maximum Wattage:
50w PAR20
8w PAR20
1162AT-849
RECESSED TRIM
Satin Nickel Aluminum Reflector
Satin Nickel Steel Trim
Maximum Wattage:
50w PAR20
8w PAR20
1162AT-861
RECESSED TRIM
Satin Nickel - White Aluminum Reflector
White Steel Trim
Maximum Wattage:
50w PAR20
8w PAR20
1166AT-15
4" Eyeball Trim
White Steel Housing
White Steel Trim
Maximum Wattage:
8w PAR20
50w PAR20
